Bottle Top Dispensers, Standard

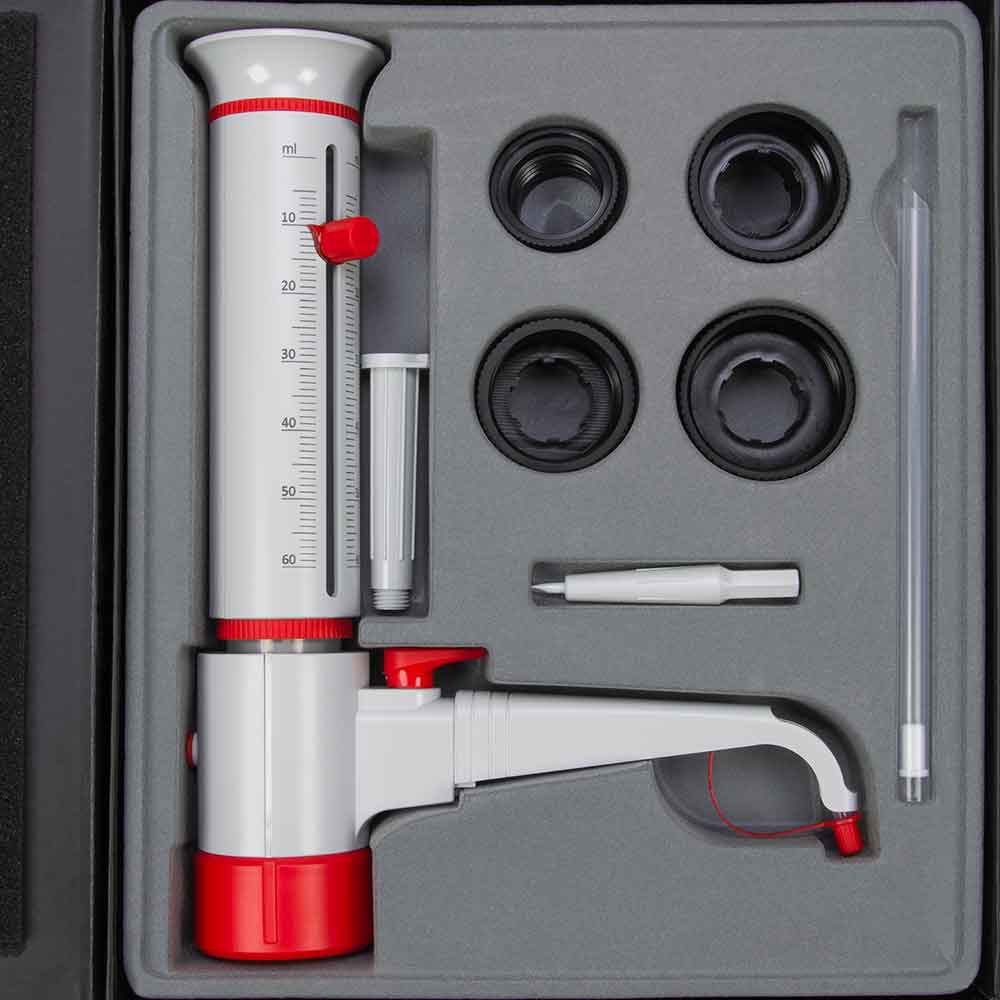

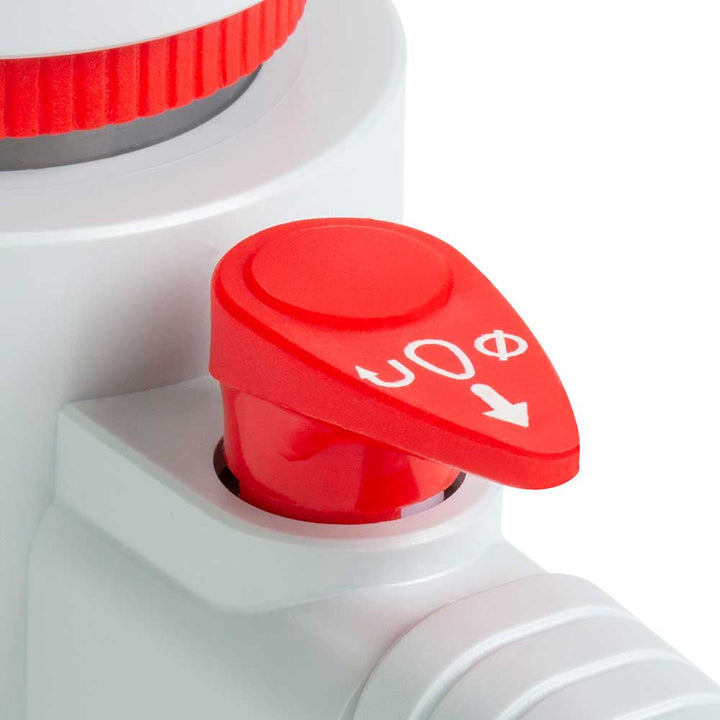

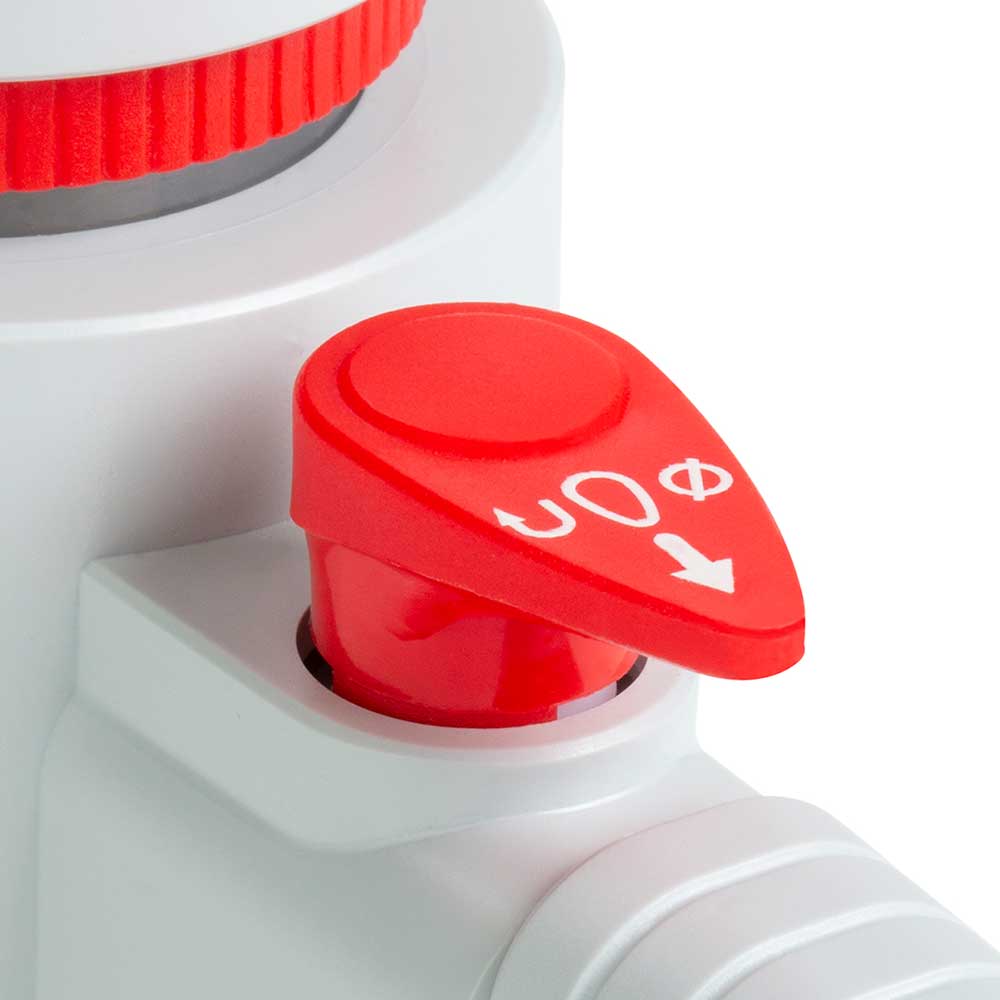

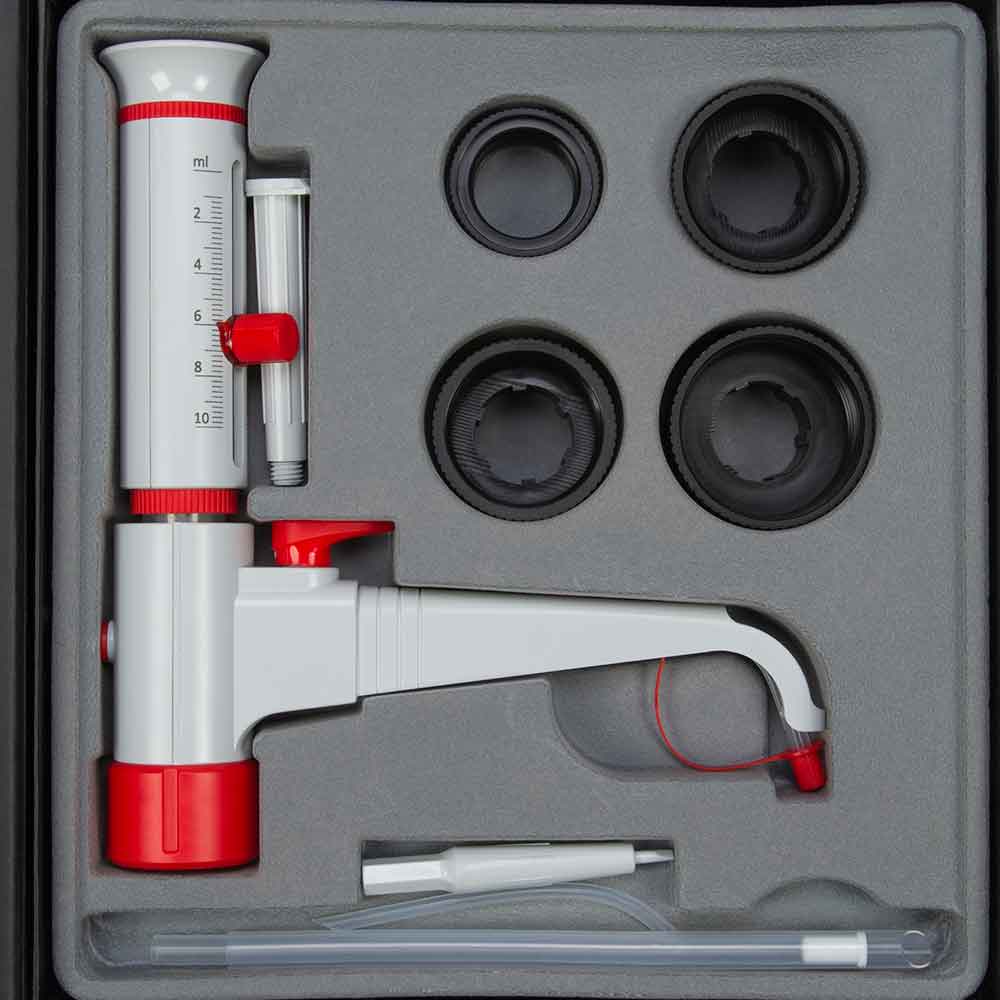

Diamond® SureFlow™ Bottle Top Dispensers have been designed with several features to make the dispensing of your valuable laboratory reagents easier than ever. With your choice of standard or recirculating models, features include a unique piston design which allows cleaning and servicing without changing the calibration, and a springless valve which requires less maintenance, offers higher reliability and added chemical resistance. Dual graduations, volume lock and four additional bottle thread adapters are all standard. Recirculating models help eliminate the loss of your valuable reagents by priming without loss.



Features Include:

  • Fully autoclavable
  • 2-Year warranty

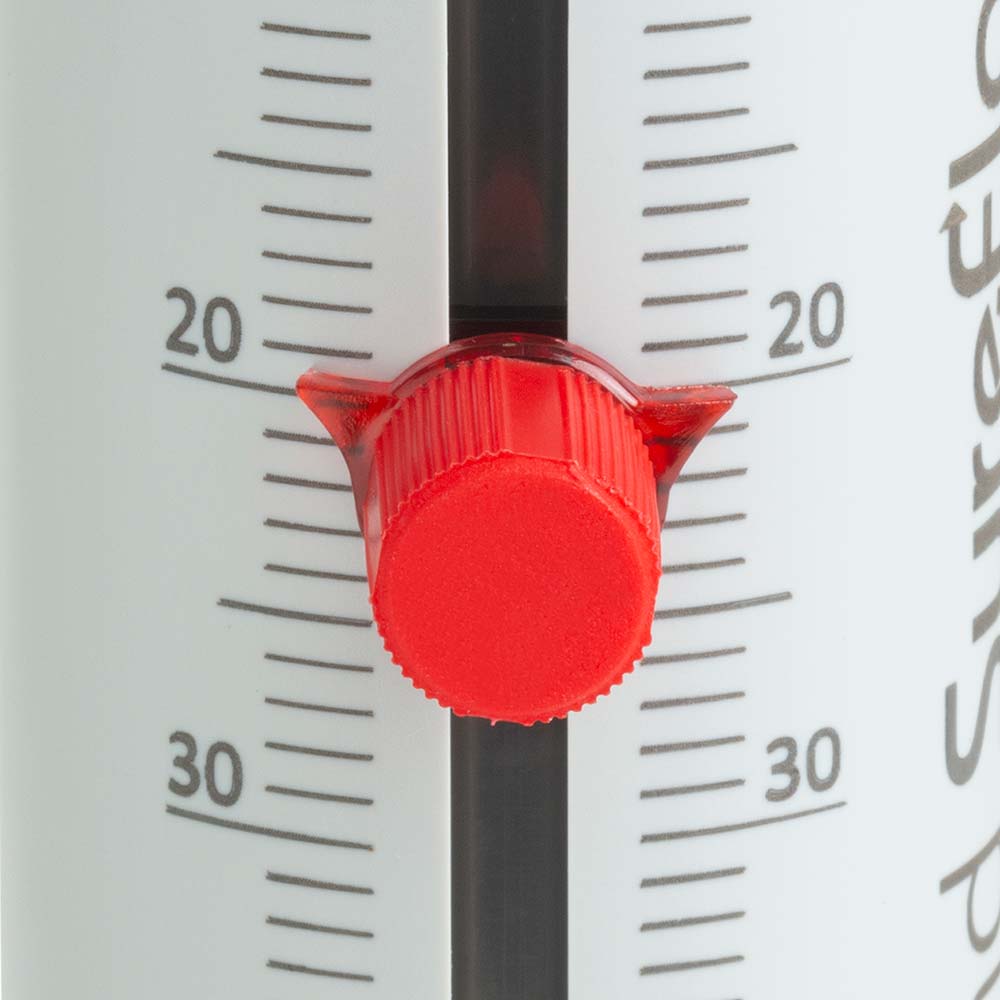

  • Locking feature to prevent spills
  • Single tool recalibrations
  • 360° Rotation to dispense in multiple vessels
  • Ergonomic design for easy dispensing
  • Simple operation
  • Lower pressure for larger volumes helpsreduce splashing
  • Telescopic fill tube for bottles ranging in height from 170mm to 300mm

For a complete listing of applicable accessories,click here

Volume (mL) Increment (mL) Accuracy (±) % Precision (±) %
± % ± mL ± % ± mL
0.25 - 2.5 0.05 0.6 0.015 0.2 0.005
0.5 - 5 0.1 0.5 0.025 0.2 0.01
1 - 10 0.2 0.5 0.05 0.2 0.02
2.5 - 25 0.5 0.5 0.125 0.2 0.05
2.5 - 30 0.5 0.5 0.15 0.2 0.06
5 - 50 1.0 0.5 0.25 0.2 0.1
5 - 60  1.0 0.5 0.3 0.2 0.12
10 - 100 2.0 0.5 0.5 0.2 0.2
Diamond SureFlow Bottle Top Dispenser Brochure Diamond SureFlow Bottle Top Dispenser User Manual

Ordering Information

Item Number ImageDescription UnitQuantity Unit Price

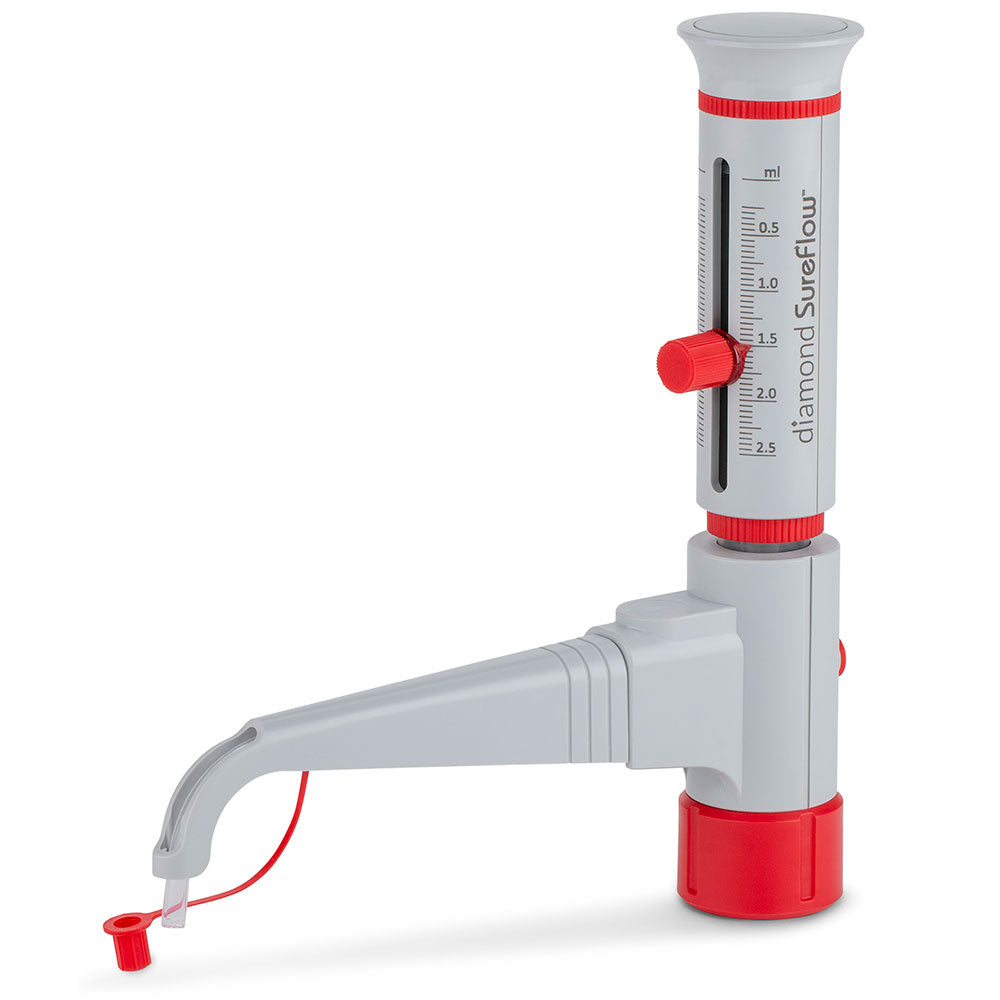

GBTD-2.5 Bottle Top Dispenser, Diamond SureFlow, Standard, 0.25mL to 2.5mL, 0.05mL increments Bottle Top Dispenser, 0.25mL to 2.5mL, 0.05mL increments, Standard Each $326.10
Bottle Top Dispenser, Diamond SureFlow, Standard, 0.25mL to 2.5mL, 0.05mL increments Bottle Top Dispenser, 0.25mL to 2.5mL, 0.05mL increments, Standard
Item Number GBTD-2.5
Unit Price $326.10
Unit Each
Quantity

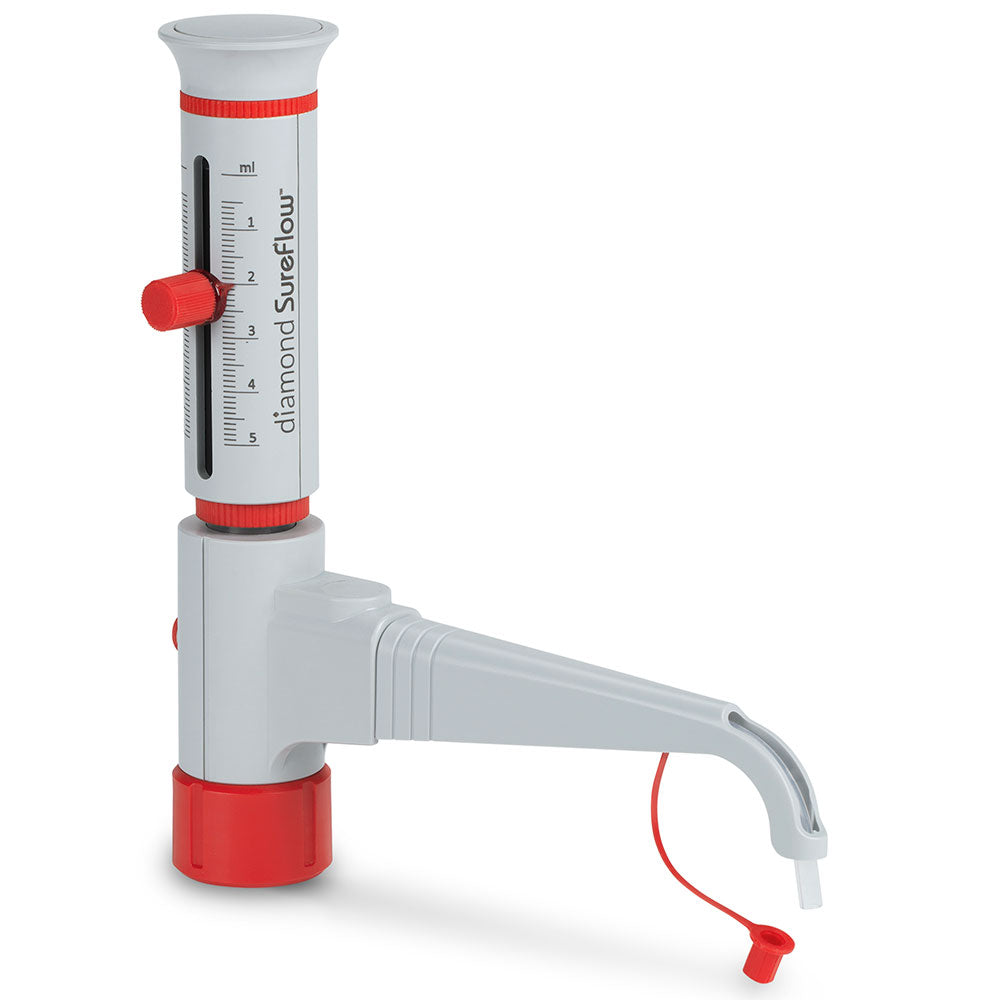

GBTD-05 Bottle Top Dispenser, Diamond SureFlow, Standard, 0.5mL to 5.0mL, 0.1mL increments Bottle Top Dispenser, 0.5mL to 5.0mL, 0.1mL increments, Standard Each $326.10
Bottle Top Dispenser, Diamond SureFlow, Standard, 0.5mL to 5.0mL, 0.1mL increments Bottle Top Dispenser, 0.5mL to 5.0mL, 0.1mL increments, Standard
Item Number GBTD-05
Unit Price $326.10
Unit Each
Quantity

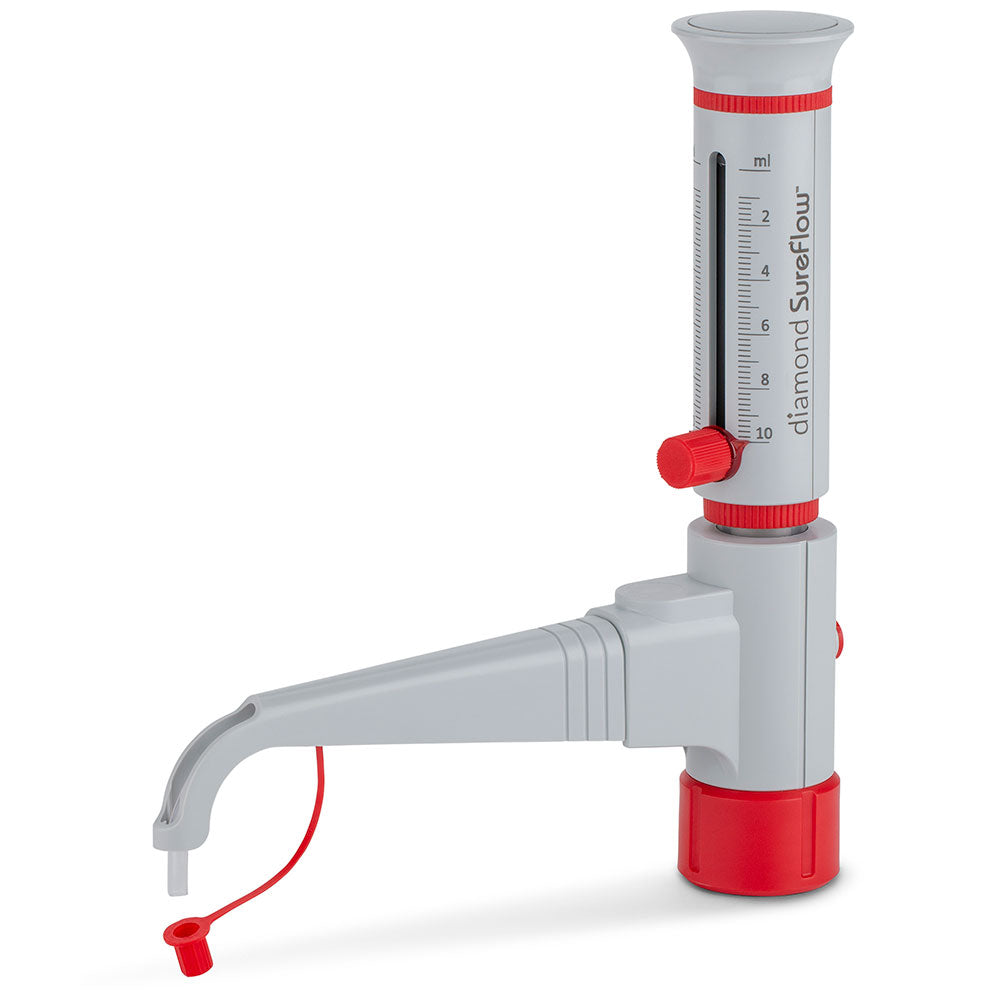

GBTD-10 Bottle Top Dispenser, Diamond SureFlow, Standard, 1.0mL to 10.0mL, 0.2mL increments Bottle Top Dispenser, 1.0mL to 10.0mL, 0.2mL increments, Standard Each $326.10
Bottle Top Dispenser, Diamond SureFlow, Standard, 1.0mL to 10.0mL, 0.2mL increments Bottle Top Dispenser, 1.0mL to 10.0mL, 0.2mL increments, Standard
Item Number GBTD-10
Unit Price $326.10
Unit Each
Quantity

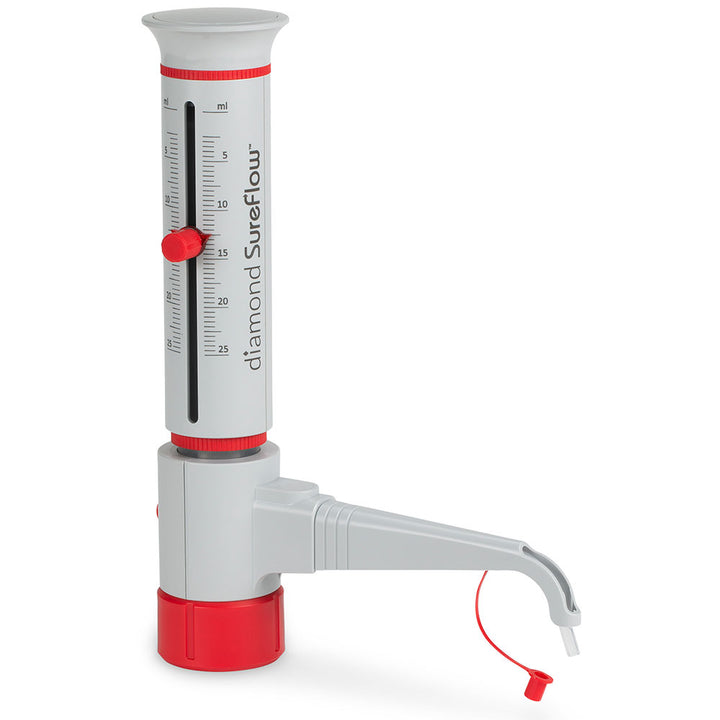

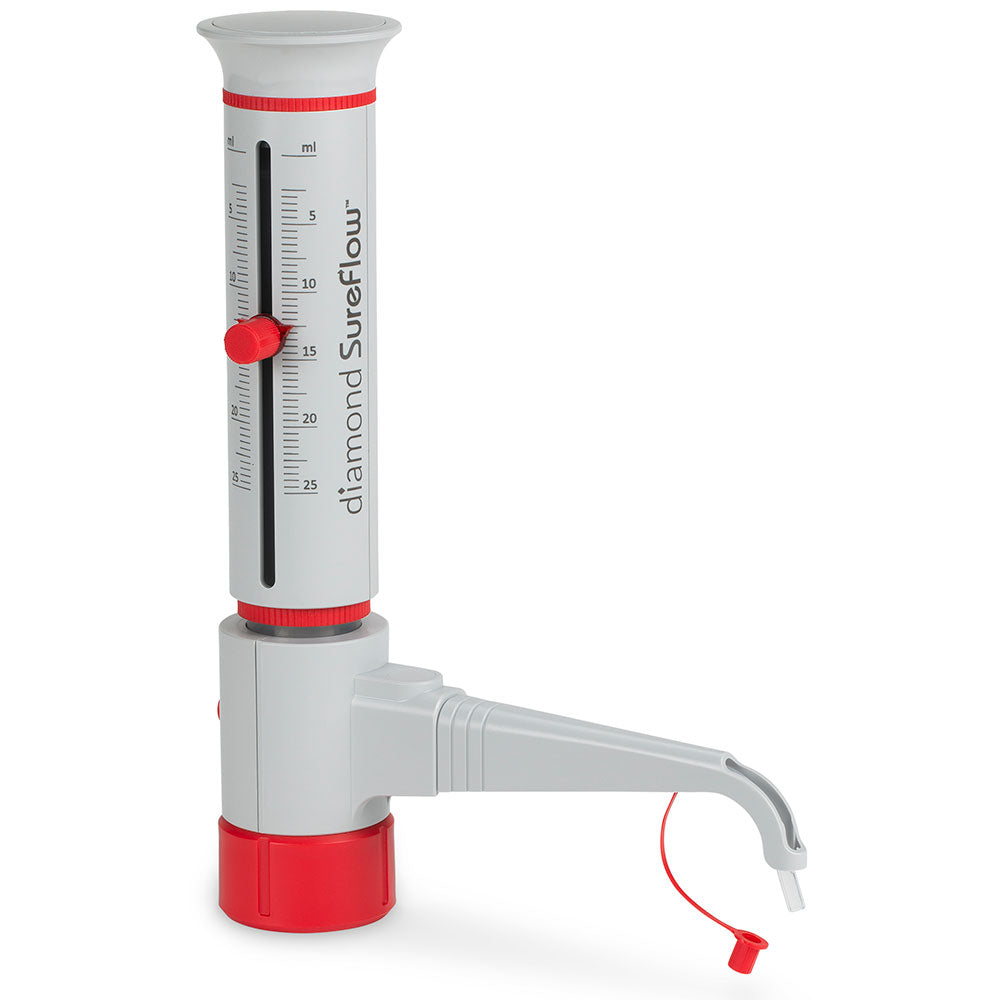

GBTD-25 Bottle Top Dispenser, Diamond SureFlow, Standard, 2.5mL to 25.0mL, 0.5mL increments Bottle Top Dispenser, 2.5mL to 25.0mL, 0.5mL increments, Standard Each $392.70
Bottle Top Dispenser, Diamond SureFlow, Standard, 2.5mL to 25.0mL, 0.5mL increments Bottle Top Dispenser, 2.5mL to 25.0mL, 0.5mL increments, Standard
Item Number GBTD-25
Unit Price $392.70
Unit Each
Quantity

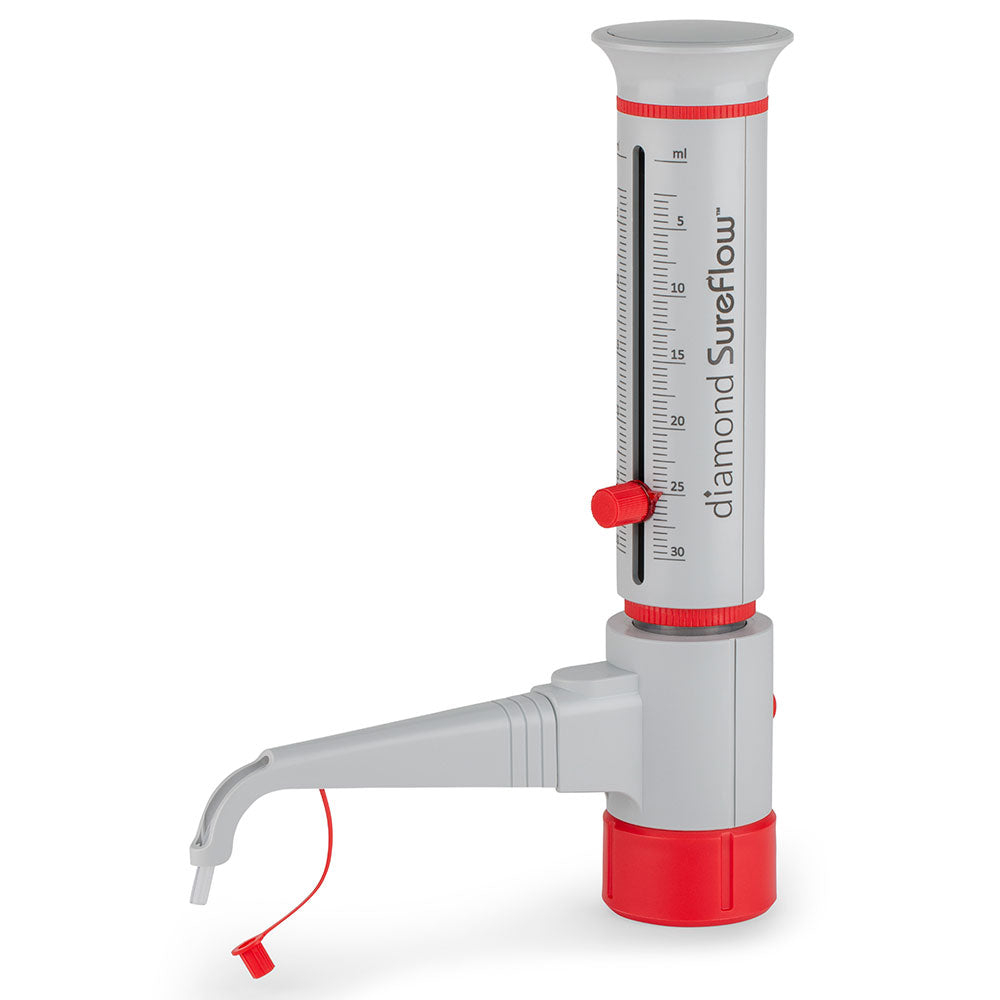

GBTD-30 Bottle Top Dispenser, Diamond SureFlow, Standard, 2.5mL to 30.0mL, 0.5mL increments Bottle Top Dispenser, 2.5mL to 30.0mL, 0.5mL increments, Standard Each $392.70
Bottle Top Dispenser, Diamond SureFlow, Standard, 2.5mL to 30.0mL, 0.5mL increments Bottle Top Dispenser, 2.5mL to 30.0mL, 0.5mL increments, Standard
Item Number GBTD-30
Unit Price $392.70
Unit Each
Quantity

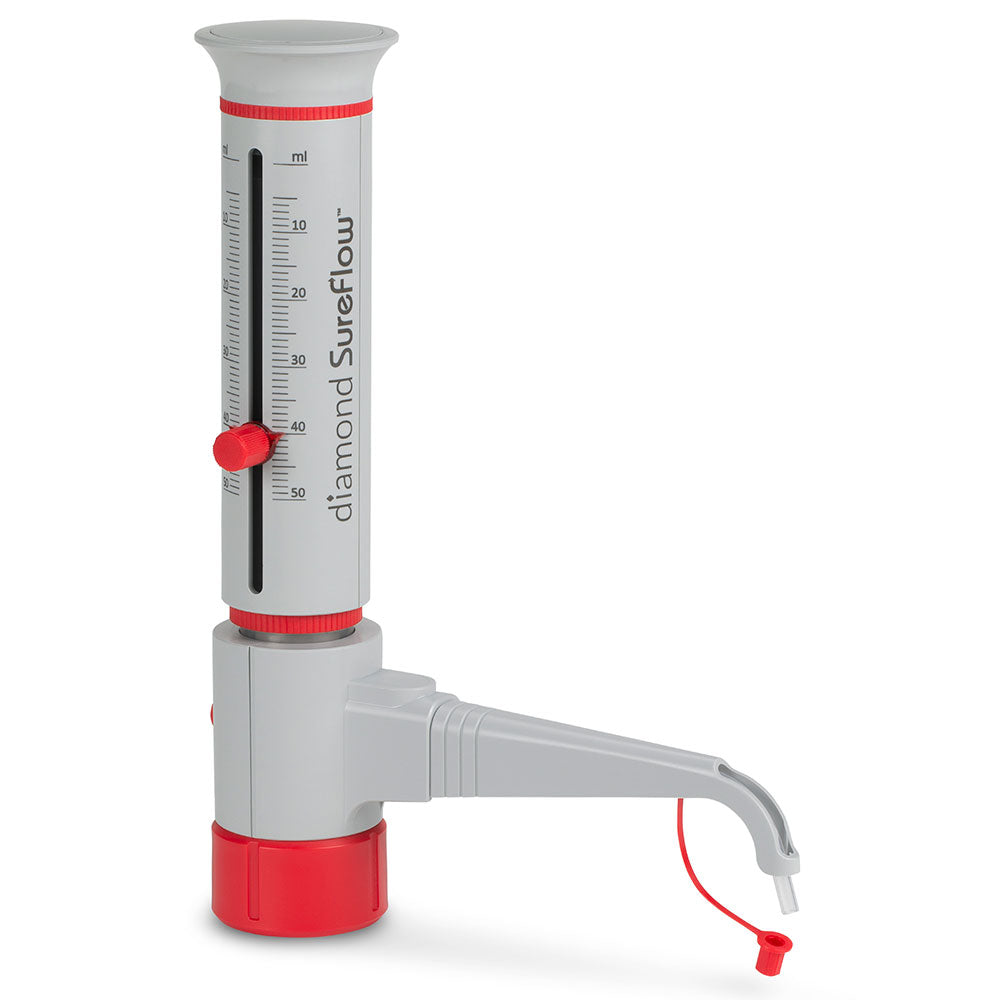

GBTD-50 Bottle Top Dispenser, Diamond SureFlow, Standard, 5.0mL to 50.0mL, 1.0mL increments Bottle Top Dispenser, 5.0mL to 50.0mL, 1.0mL increments, Standard Each $392.70
Bottle Top Dispenser, Diamond SureFlow, Standard, 5.0mL to 50.0mL, 1.0mL increments Bottle Top Dispenser, 5.0mL to 50.0mL, 1.0mL increments, Standard
Item Number GBTD-50
Unit Price $392.70
Unit Each
Quantity

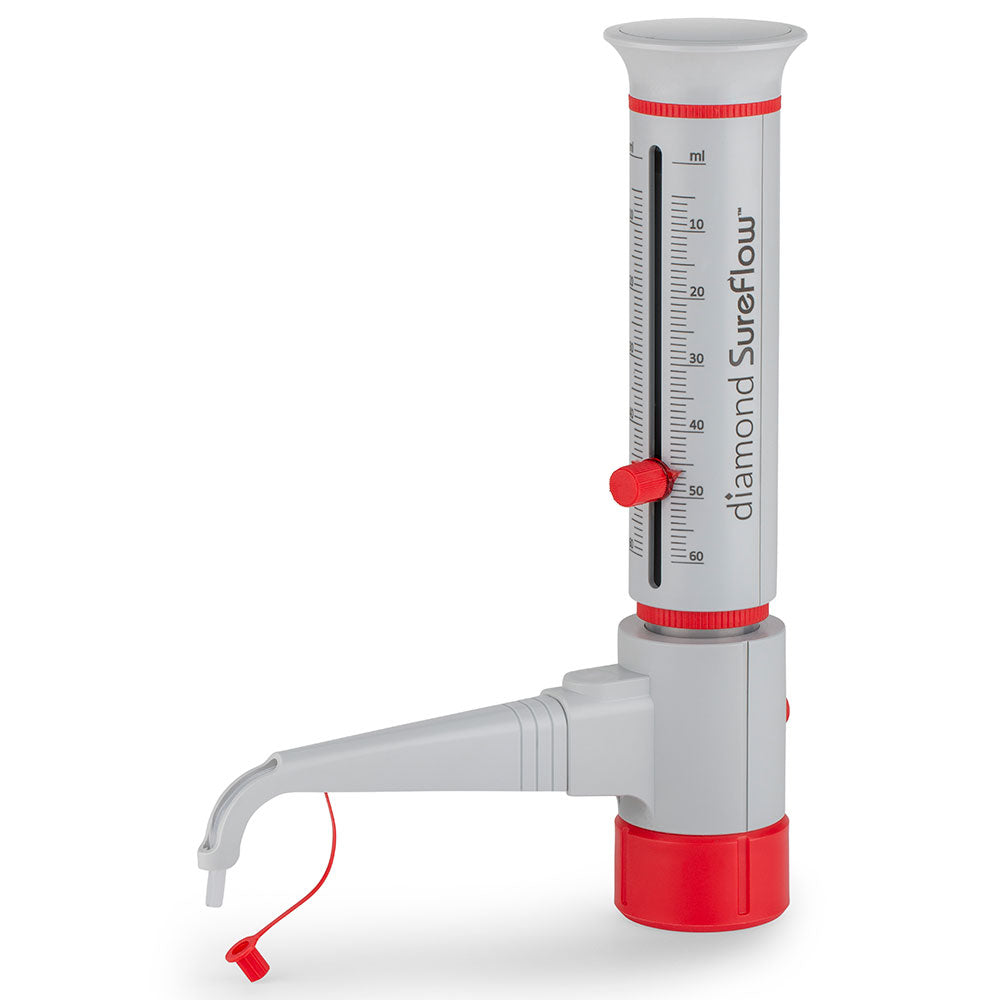

GBTD-60 Bottle Top Dispenser, Diamond SureFlow, Standard, 5.0mL to 60.0mL, 1.0mL increments Bottle Top Dispenser, 5.0mL to 60.0mL, 1.0mL increments, Standard Each $392.70
Bottle Top Dispenser, Diamond SureFlow, Standard, 5.0mL to 60.0mL, 1.0mL increments Bottle Top Dispenser, 5.0mL to 60.0mL, 1.0mL increments, Standard
Item Number GBTD-60
Unit Price $392.70
Unit Each
Quantity

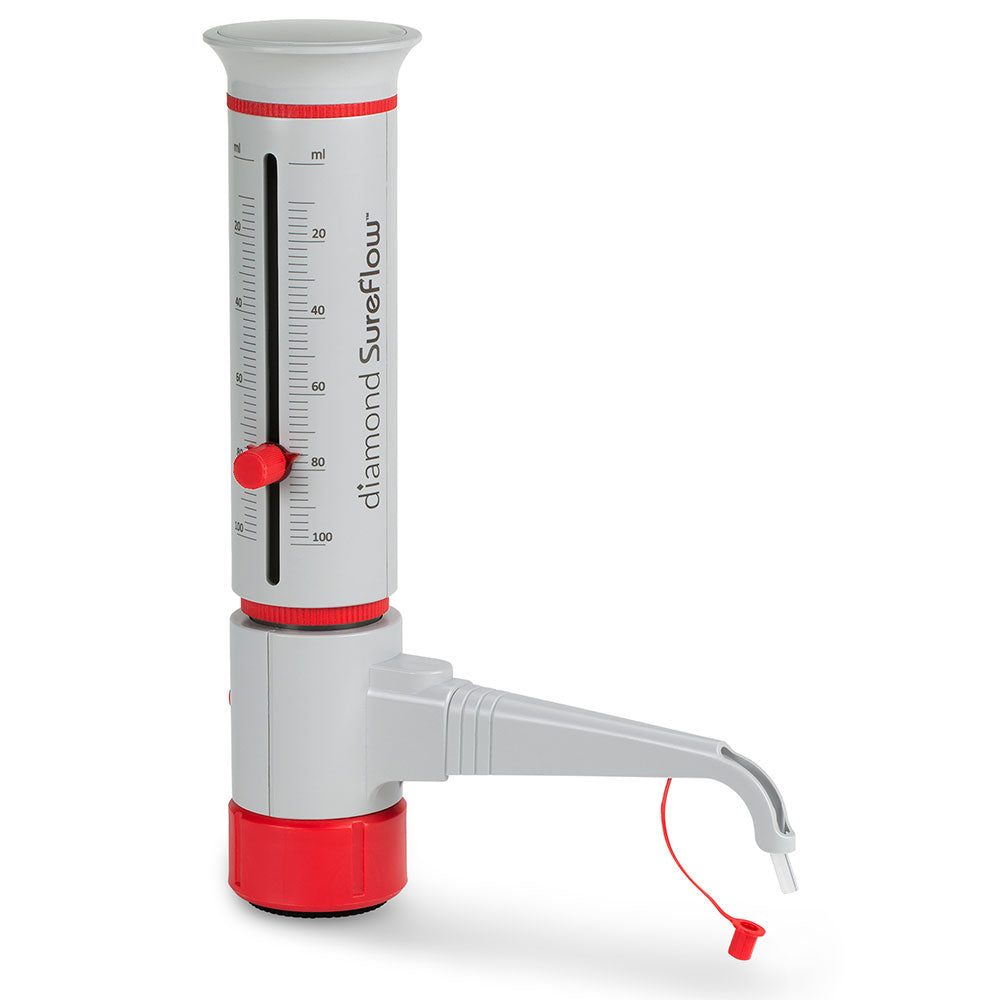

GBTD-100 Bottle Top Dispenser, Diamond SureFlow, Standard, 10.0mL to 100.0mL, 2.0mL increments Bottle Top Dispenser, 10.0mL to 100.0mL, 2.0mL increments, Standard Each $485.80
Bottle Top Dispenser, Diamond SureFlow, Standard, 10.0mL to 100.0mL, 2.0mL increments Bottle Top Dispenser, 10.0mL to 100.0mL, 2.0mL increments, Standard
Item Number GBTD-100
Unit Price $485.80
Unit Each
Quantity
