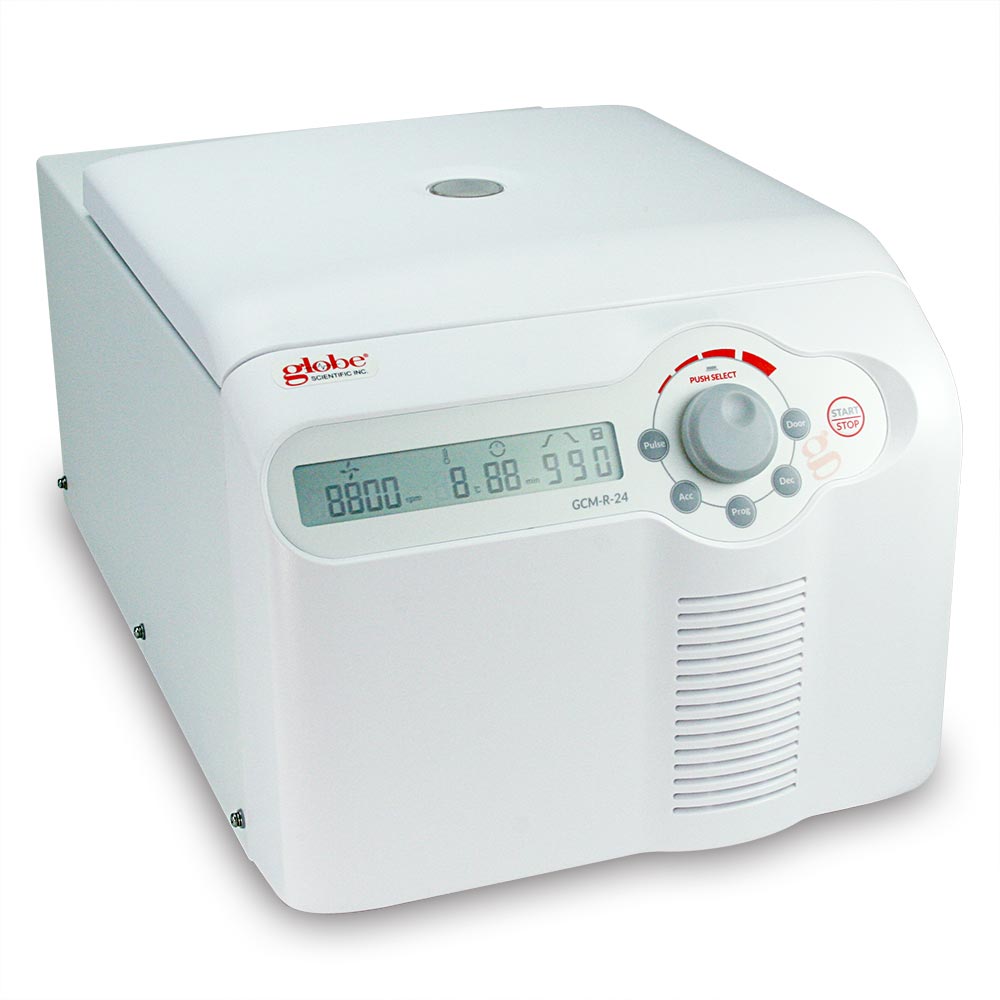

GCM-R-24

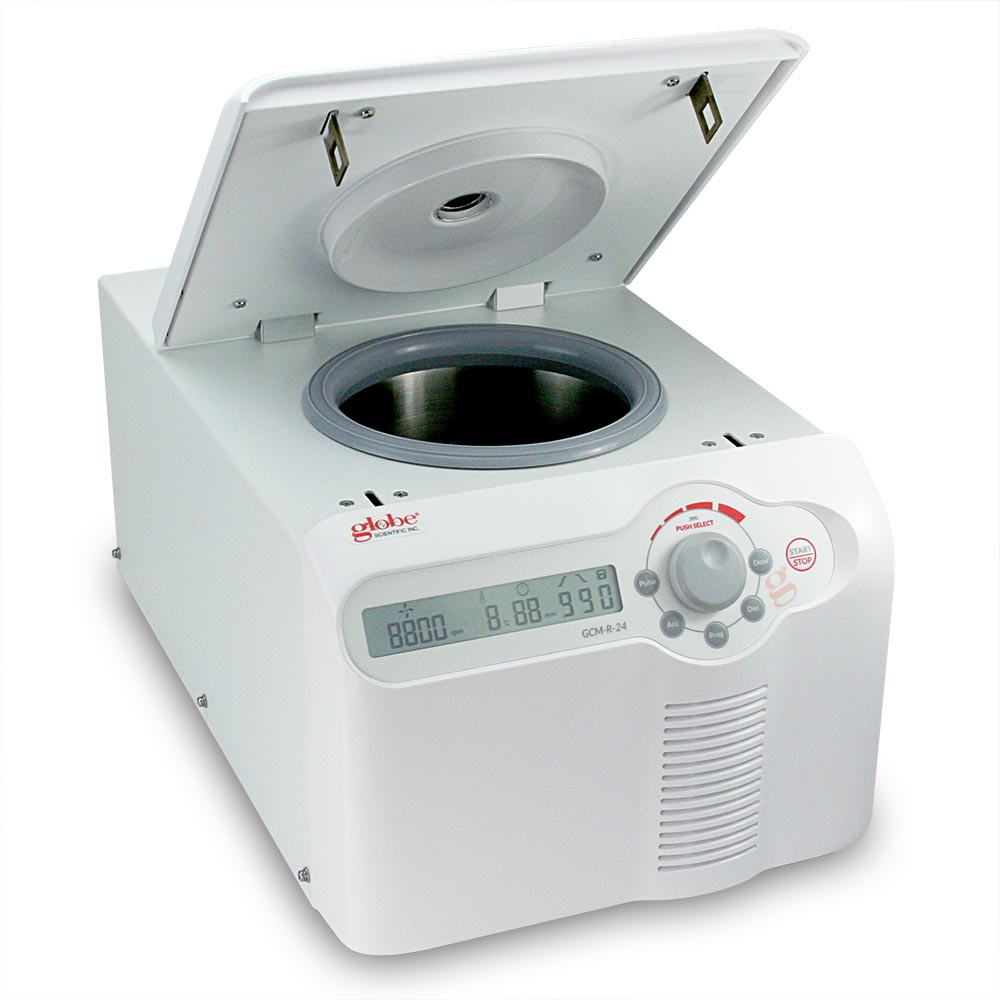

GCM-R-24 Open

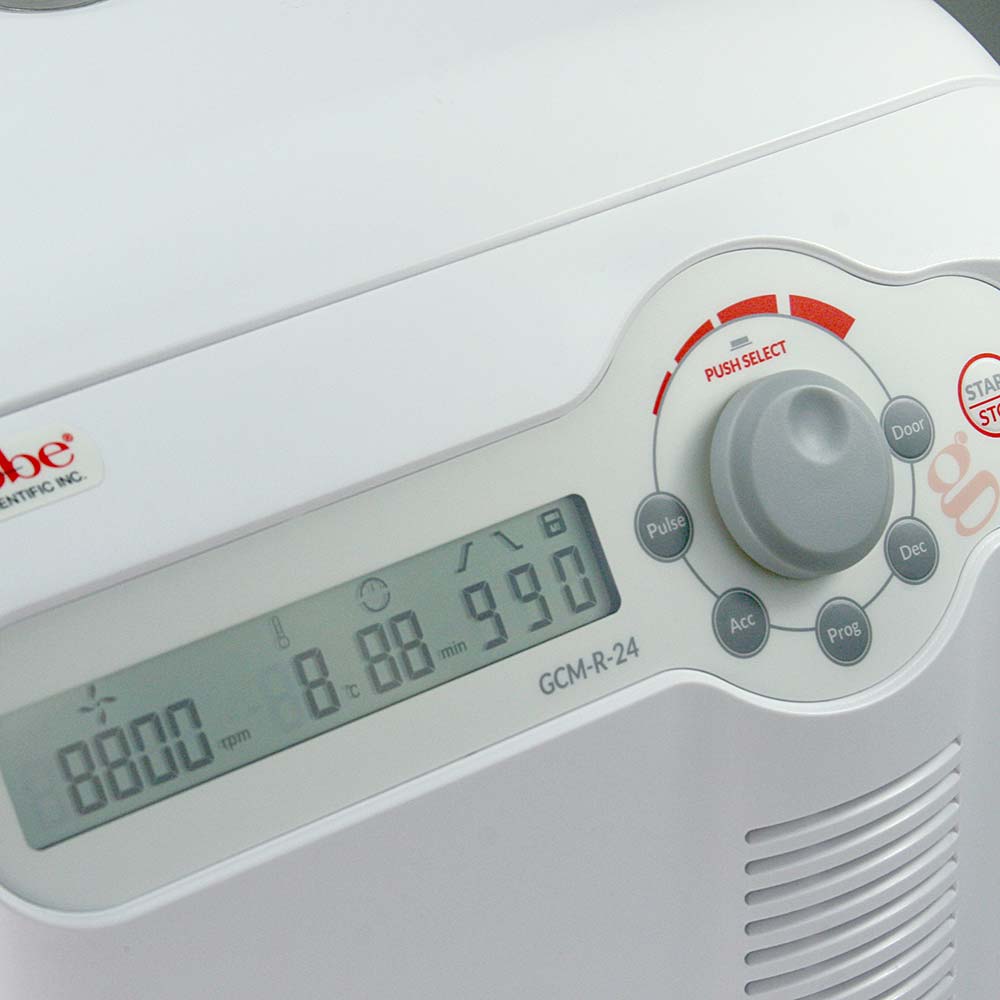

GCM-R-24 Panel

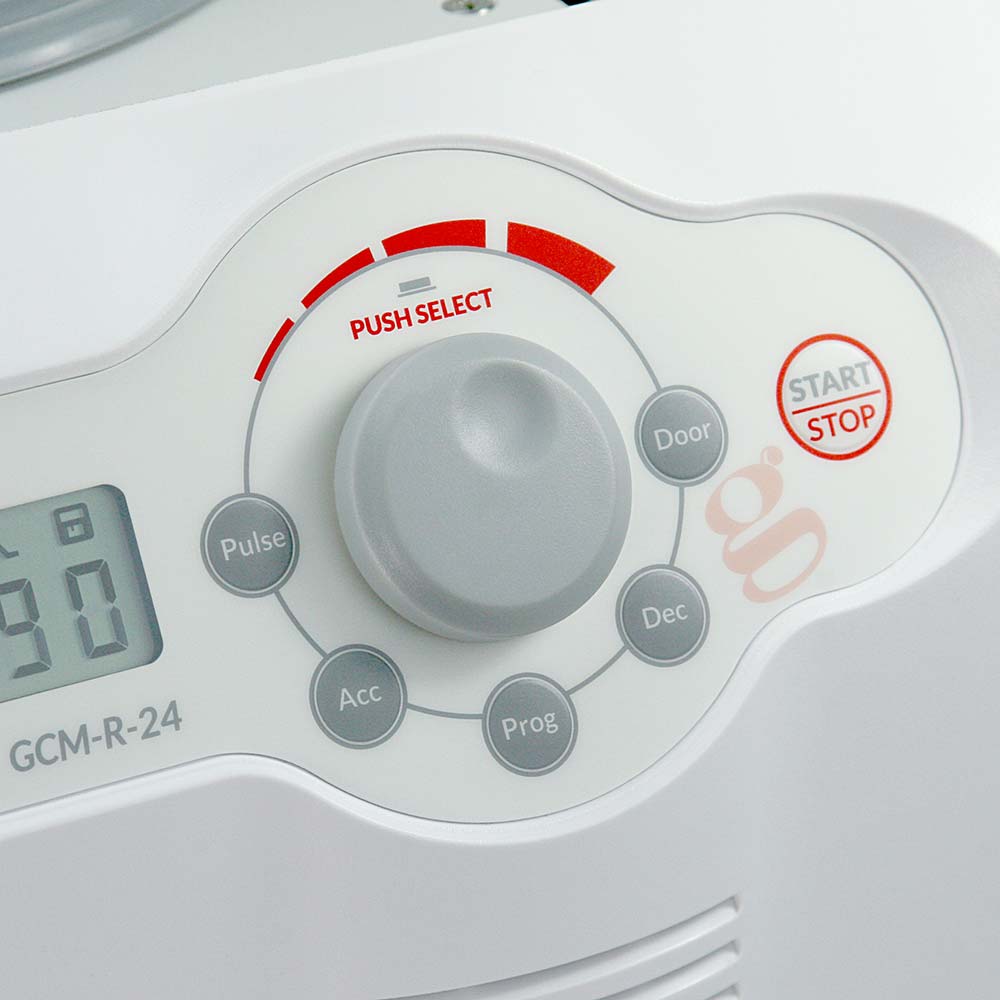

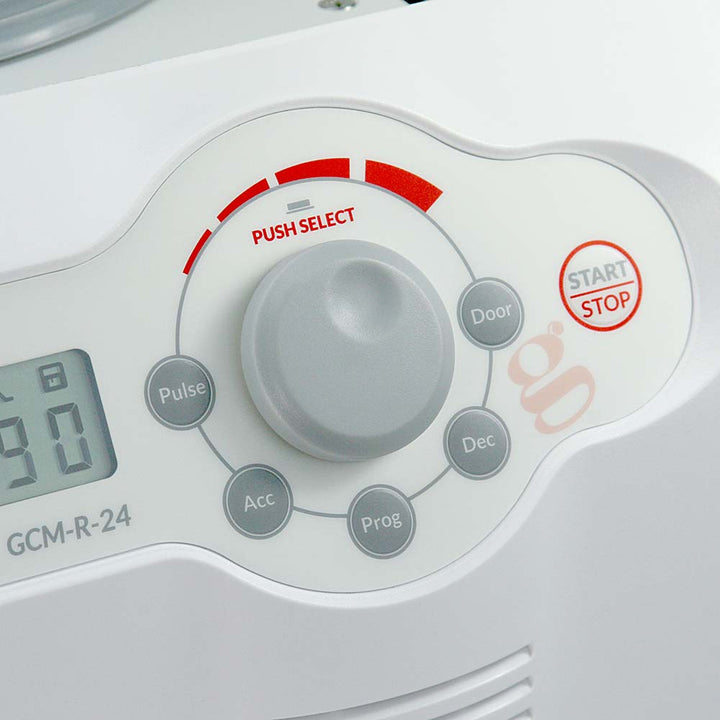

GCM-R-24 Detail

Refrigerated Microcentrifuge

Globe Scientific's GCM-R-24 Refrigerated Microcentrifuge is based on the solid foundation of the GCM-24 and adds refrigerated control for your critical temperature sensitive samples. Suitable for various applications, including molecular biology, chemistry, and more, the GCM-R-24 has an intuitive button and knob interface for quick programming, a high strength 24-place aluminum alloy rotor with a biosafety aerosol containment lid (all of which can be fully autoclaved), a powerful yet quiet compressor for fast, accurate temperature control and much more. The GCM-R-24 can cool its rotor chamber and samples down to 4°C within just seven (7) minutes of operation - even at maximum speed and capacity!

Features:

  • Pre-cooling ensures optimal protection of the sample before operation
  • Guaranteed 4°C cooling of both chamber and samples within only 7 minutes - even at maximum speed and capacity utilization
  • Audible alert function
  • Dual lid lock function ensures samples are kept at temperature even after centrifugation
  • Intermittent temperature control mode, CFC-free refrigerant and low carbon life rotor capacity
  • Fully autoclavable aluminum rotor with aerosol lid included as standard
  • Optional rotors available
  • Quiet operation (noise level < 54dB)
  • Maintenance free brushless DC motor

Advanced Features

  • Speed / RCF switch
  • Quick spin function
  • Audible alert function

Safety Features

  • Dual door safety interlock
  • Over-temperature detection
  • Excessive speed detection
  • Automatic internal diagnostics
Specifications GCM-R-24
Maximum Speed 15,000 rpm (200-15,000rpm), 10 rpm increments
Maximum RCF 21,380 x G, (10 x G increments)
Speed Accuracy +/- 20 rpm
Temperature Range -20°C to 40°C
Rotor Capacity Twenty-four (24) 1.5 / 2.0mL tubes
Run Time 30 sec - 99 min or continuous
Power 10A, 400W
Acceleration Time 25 Seconds
Braking Time 25 Seconds
Dimension (W x D x H) 338 x 580 x 324mm (13.3 x 22.8 x 12.8")
Weight 30 Kg (66.1 lbs)
Certifications CE, cTÜVus, FCC, MCA
Warranty 2 Years
