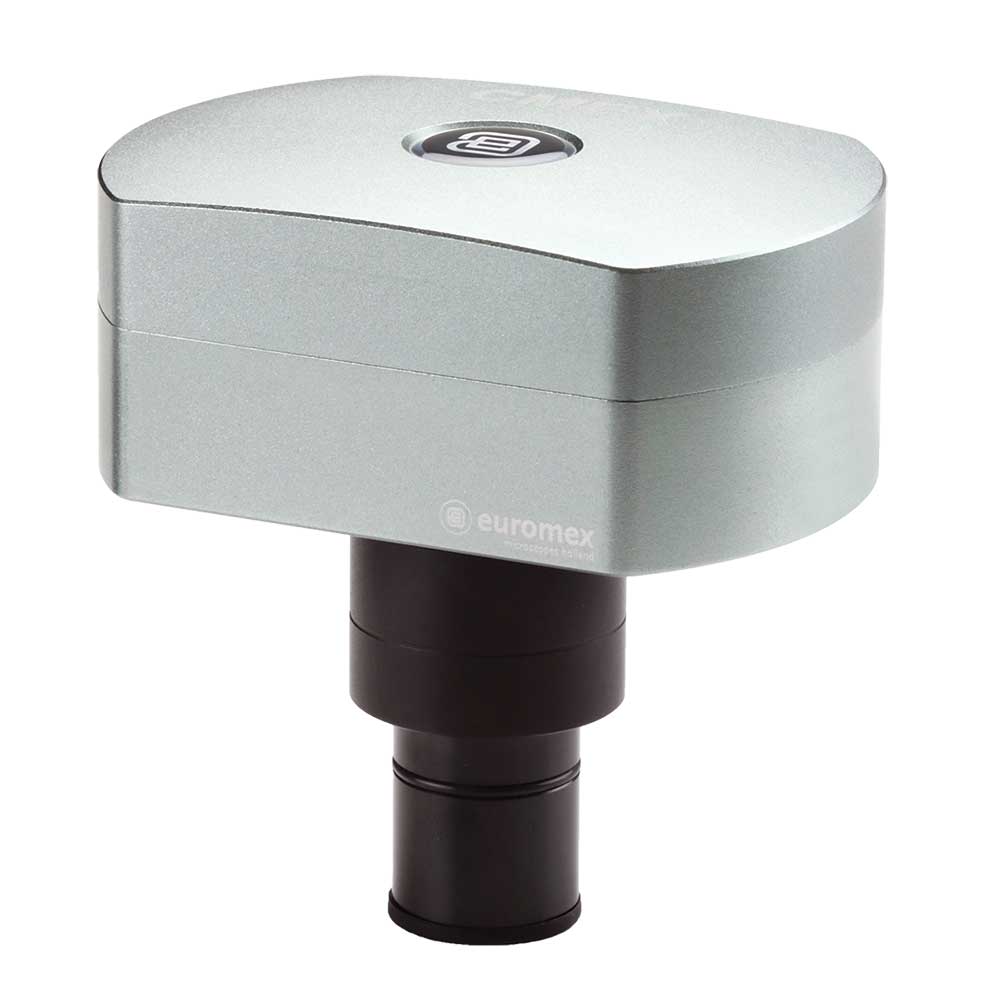

CMEX Pro High-Speed Microscope Cameras

The high-speed USB-3 cameras with ImageFocus Alpha capture and analysis software are the perfect solutions for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for life science, material science and stereo microscopes.

The CMEX-5 Pro, CMEX-10 Pro and CMEX-20 Pro cameras are equipped with relatively 5.1, 10 or 20MP CMOS sensors with 12-bits grayscale conversion and a 24-bits color rendering. These cameras are equipped with a USB- 3 data interface enabling fast frame rates.

Besides taking images and videos, the ImageFocus Alpha software allows measurements on still and live images and to perform annotations on captured images. Compatible with Windows 10 and 11, both 32- and 64-bits configurations. A 2GB RAM 2.8GHz computer and 17-inch display is recommended as a minimum requirement.

FEATURES

  • High speed cameras
  • ADC 12-bits, color depth 24-bits
  • Excellent software
  • USB 3.0 interface (USB 2.0 compatible)
  • 3.1 to 20MP CMOS sensors
  • Great color reproduction
  • Low signal/noise ratio

CMEX Pro High-Speed Cameras

EDC-5000-PRO

EDC-10000-PRO

EDC-20000-PRO

Pixels (MP)

5.1

10

20

Sensor

1/2,5” CMOS

1/2,5” CMOS

CMOS

Pixel size (μm)

2.2 x 2.2

1.67 x 1.67

1.4 x 1.4

Exposure time

0.1ms ~ 2000ms

0.1ms ~ 2000ms

0.1ms ~ 2000ms

Resolutions

2560 x 1922

1280 x 960

640 x 480

3584 x 2746

1792 x 1372

5120 x 3840

2560 x 1920

Max. frames (p/sec)

14

39

100

8

25

20

45

Grayscale conversion

12-bits

Color rendering

24-bits

Signal/ Noise (db)

39

35.5

39.3

Dynamic (db)

68

63.5

63.8

Sensitivity V/lux-sec

1.76

0.31

8.4 Ke

TECHNICAL SPECIFICATIONS

EDC-5000-PRO

EDC-10000-PRO

EDC-20000-PRO

Sensor

CMOS 1/2.5 inch

CMOS 1/1.8 inch

Pixels

2560 x 1922 pixels, 5.1MP

3584 x 2746 pixels, 10.0MP

5120 x 3840 pixels, 20.0MP

Scan mode

Progressive, rolling shutter

Pixel size

2.2μm x 2.2μm

1.67μm x 1.67μm

1.4μm x 1.4μm

Filter

RGB

Mount

C-mount

Max fps

Up to 14 frames per second (2560x1922 pixels)
Up to 39 frames per second (1280x960 pixels)
Up to 100 frames per second (640x480 pixels)

Up to 8 frames per second (3584 x 2746 pixels)
Up to 25 frames per second (1792 x 1372 pixels)

Up to 20 frames per second (5120 x 3840 pixels)
Up to 45 frames per second (2560 x 1920 pixels)

Exposure

Automatic or manual

White Balance

Automatic or manual

Dynamic range

68dB

63.5db

63.8db

S/N max

39dB

35.5db

39.3db

Sensibility V/lux-sec

1.76

0.31

8.4 Ke

Data interface

USB 3.0 high speed

USB 3.0 high speed 80Mb/s

USB 3.0 high speed 80Mb/s

Operation

-10~50°C, 30-80 % humidity

0 – 50°C, 30-80 % humidity

0 – 50°C, 30-80 % humidity

Storage temperature

-20 to 60° Celsius

Power supply

5VDC over PC USB Port

Housing

Integrated CNC aluminum alloy

Supplied with

0.5x objective with C-mount, USB 3 cable, 30 and 30.5mm adapters for stereomicroscopes, 76x24mm calibration slide (1mm/100), carton box

Software

ImageFocus Alpha capture and measuring software for Win 10/11 (32- and 64-bit configurations). A Mac OS version is available

PC requirements

Compatible with Intel Core 2, 2.8GHZ or higher, 2GB, USB-3 high-speed

Item #

Description

EDC-5000-PRO

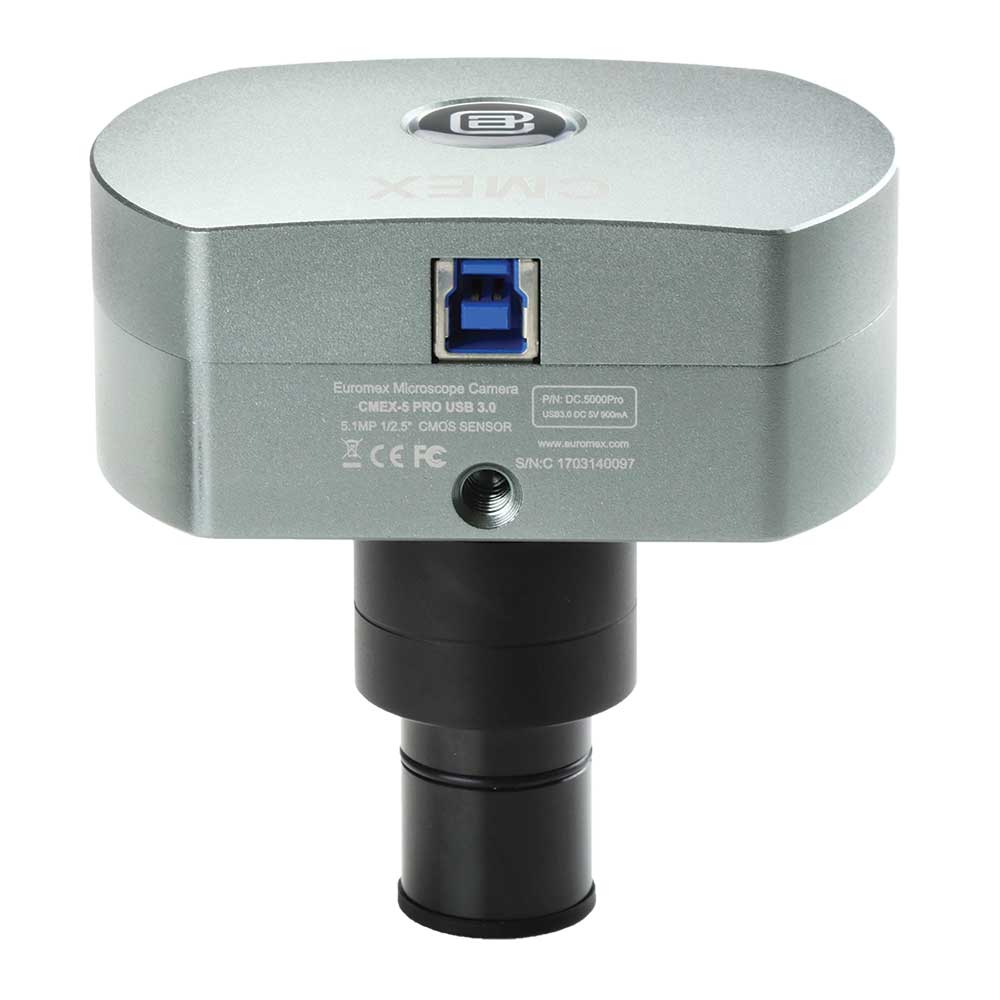

CMEX-5 Pro, 5.0MP digital USB-3 camera with 1/2.5-inch CMOS sensor

EDC-10000-PRO

CMEX-10 Pro, 10MP digital USB-3 camera with 1/2.3-inch CMOS sensor

EDC-20000-PRO

CMEX-20 Pro, 20.0MP digital USB-3 camera with 1/1.8-inch CMOS sensor
Microscopes Catalog Spanish Microscope Catalog TDS-EDC-10000-PRO TDS-EDC-18000-PRO

Ordering Information

Item Number ImageDescription UnitQuantity Unit Price
EDC-10000-PRO CMEX-10 Pro, 10 MP digital USB-3 camera , with 1/2.3 inch CMOS sensor CMEX-10 Pro, 10 MP digital USB-3 camera , with 1/2.3 inch CMOS sensor Each $943.10
CMEX-10 Pro, 10 MP digital USB-3 camera , with 1/2.3 inch CMOS sensor CMEX-10 Pro, 10 MP digital USB-3 camera , with 1/2.3 inch CMOS sensor
Item Number EDC-10000-PRO
Unit Price $943.10
Unit Each
Quantity
EDC-20000-PRO CMEX-20 Pro,20.0 MP digital USB-3 camera, with 1/2.3 inch CMOS sensor

CMEX-20 Pro,20.0 MP digital USB-3 camera, with 1/2.3 inch CMOS sensor

Each $1,335.70
CMEX-20 Pro,20.0 MP digital USB-3 camera, with 1/2.3 inch CMOS sensor

CMEX-20 Pro,20.0 MP digital USB-3 camera, with 1/2.3 inch CMOS sensor
Item Number EDC-20000-PRO
Unit Price $1,335.70
Unit Each
Quantity
EDC-5000-PRO CMEX-5 Pro, 5.0 MP digital USB-3 camera , with 1/2.5 inch CMOS sensor CMEX-5 Pro, 5.0 MP digital USB-3 camera , with 1/2.5 inch CMOS sensor Each $772.40
CMEX-5 Pro, 5.0 MP digital USB-3 camera , with 1/2.5 inch CMOS sensor CMEX-5 Pro, 5.0 MP digital USB-3 camera , with 1/2.5 inch CMOS sensor
Item Number EDC-5000-PRO
Unit Price $772.40
Unit Each
Quantity
Summary: $0.00
