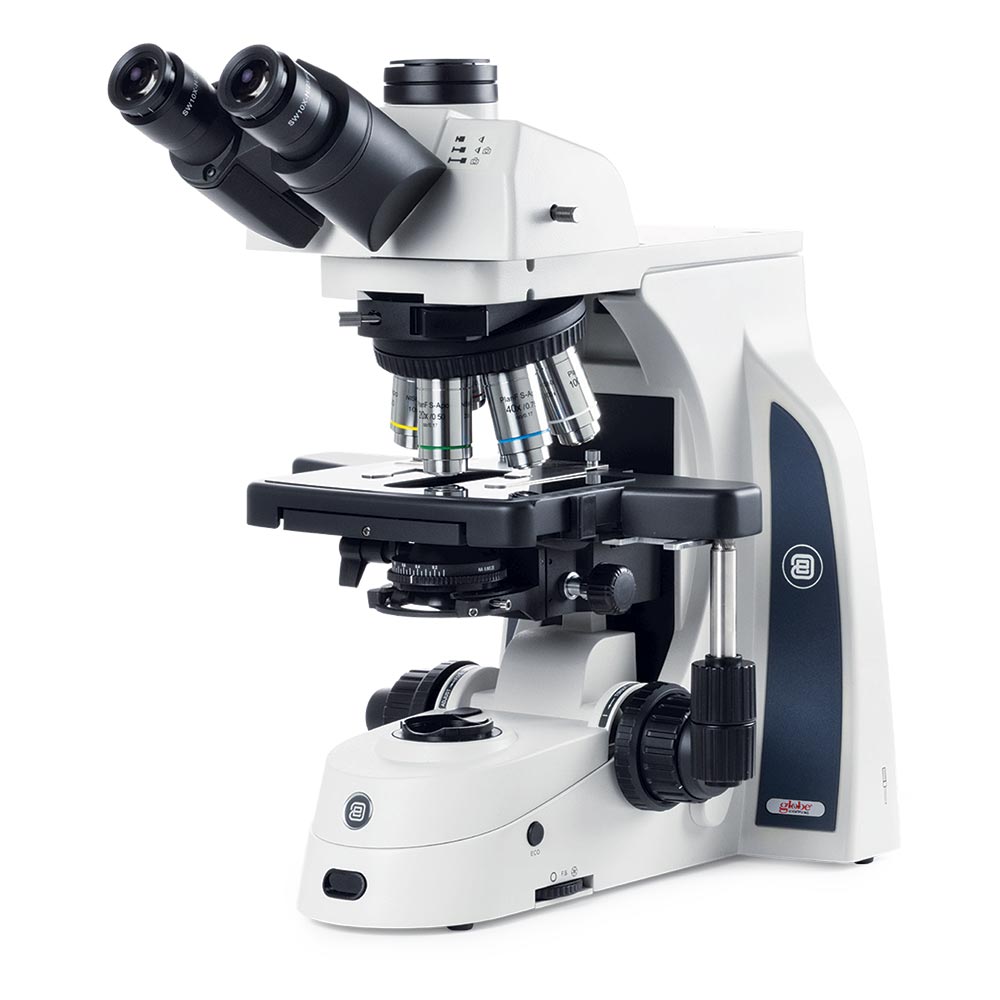

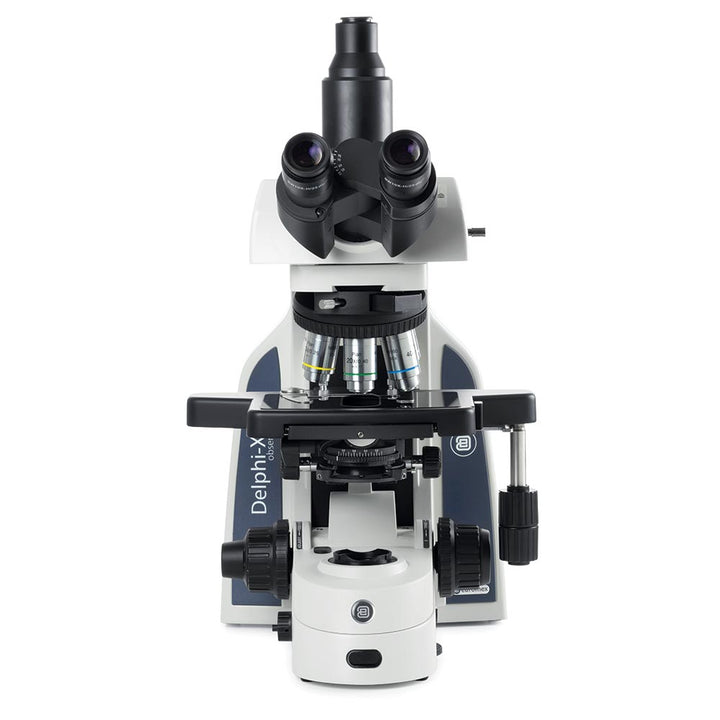

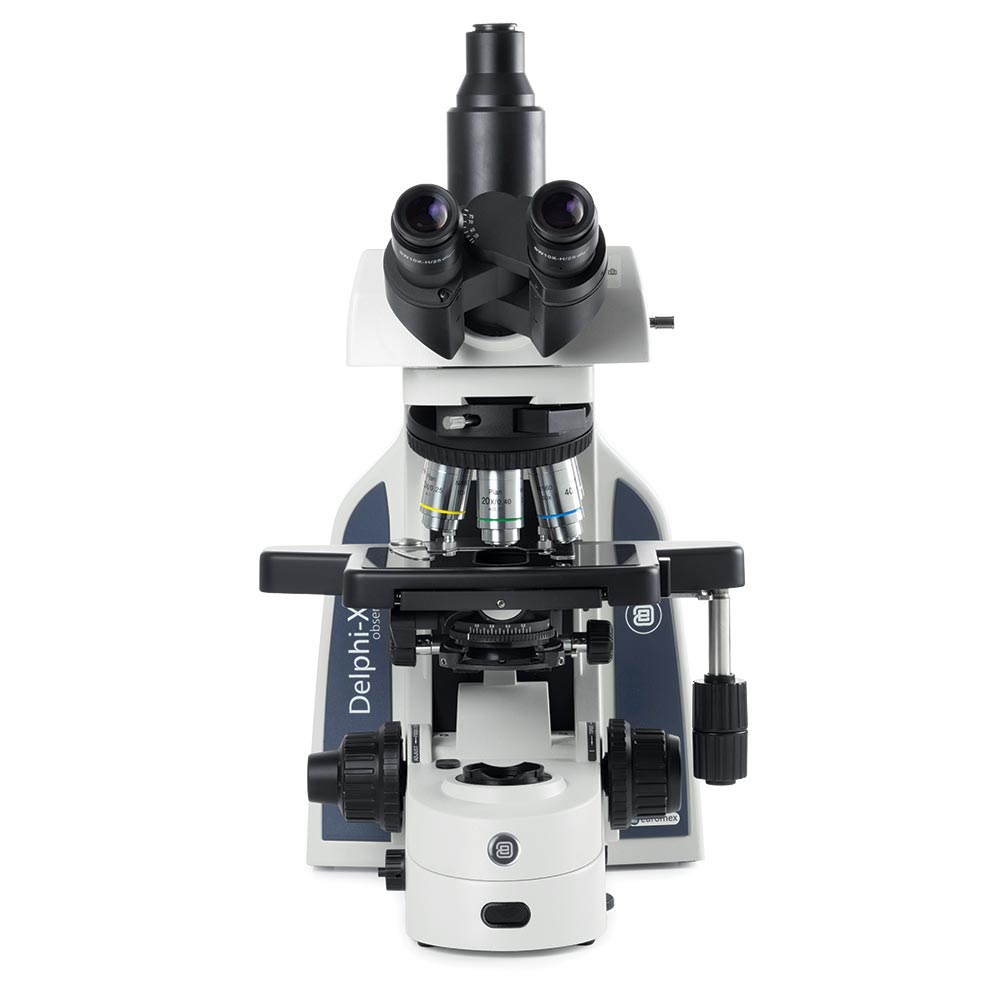

Standard Delphi-X Observer Model

EYEPIECES

• Super Wide field SWF 10x/25mm, Ø 30mm tubes
• Extended Wide Field EWF 10x/22mm, Ø 30mm tubes

STANDARD HEAD

• Siedentopf trinocular with 30° inclined tubes. Interpupillary distance adjustable between 47 and 78mm. The trinocular standard head has an optical path selector (100:0 / 80:20 / 0:100). Diopter adjustment on both eyepieces

ERGONOMIC TILTING HEAD

• Optional ergonomic 0 to 35° tilting trinocular head supplied with SWF 10x/25mm eyepieces, interpupillary distance between 47-78mm and photo tube with standard Ø 23.2mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces

NOSEPIECE

• Revolving sextuple reversed nosepiece on ball-bearings with M25 objectives mounting threads and with slot for optional DIC prism(s)

ENHANCED INFINITY SYSTEM (EIS)

• The enhanced infinity system (EIS) of the Delphi-X Observer consists of Super wide field SFWF 10x25mm eyepieces, high numerical aperture 60mm parfocal objectives and a 200mm focal length tube lens. The 200mm focal length tube lens reduces the angle of the light rays passing the optics resulting in a significantly improved chromatic aberration corrections and contrast. The larger diameter objectives enable higher numerical apertures improving the overall resolving power of the optical system

PLAN ACHROMATIC OBJECTIVES (clinical routine laboratories)

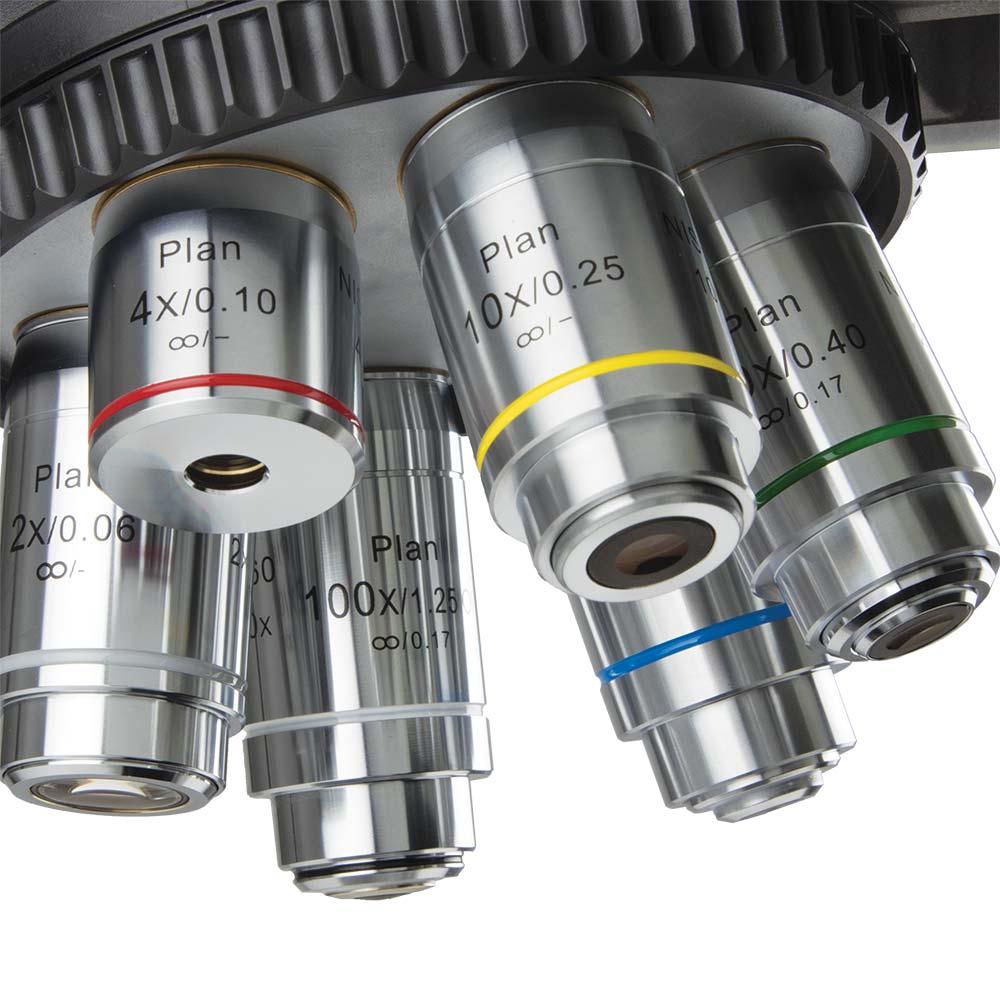

• The Delphi-X Observer is supplied with Plan Achromatic 4x/0.10, 10x/0.25, 20x/0.40 and S40x/0.65 oil immersion infinity corrected EIS objectives

 PLAN PHASE CONTRAST OBJECTIVES

• Plan Phase EIS 10x/0.25, 20x/0.40 and s40x/0.65 (oil immersion) infinity corrected EIS objectives

STAGE

• 190 x 152mm stage with 78 x 32mm integrated right-handed mechanical stage
• Designed for 2 slides
• Comes with robust and scratch-resistant Gorilla Glass

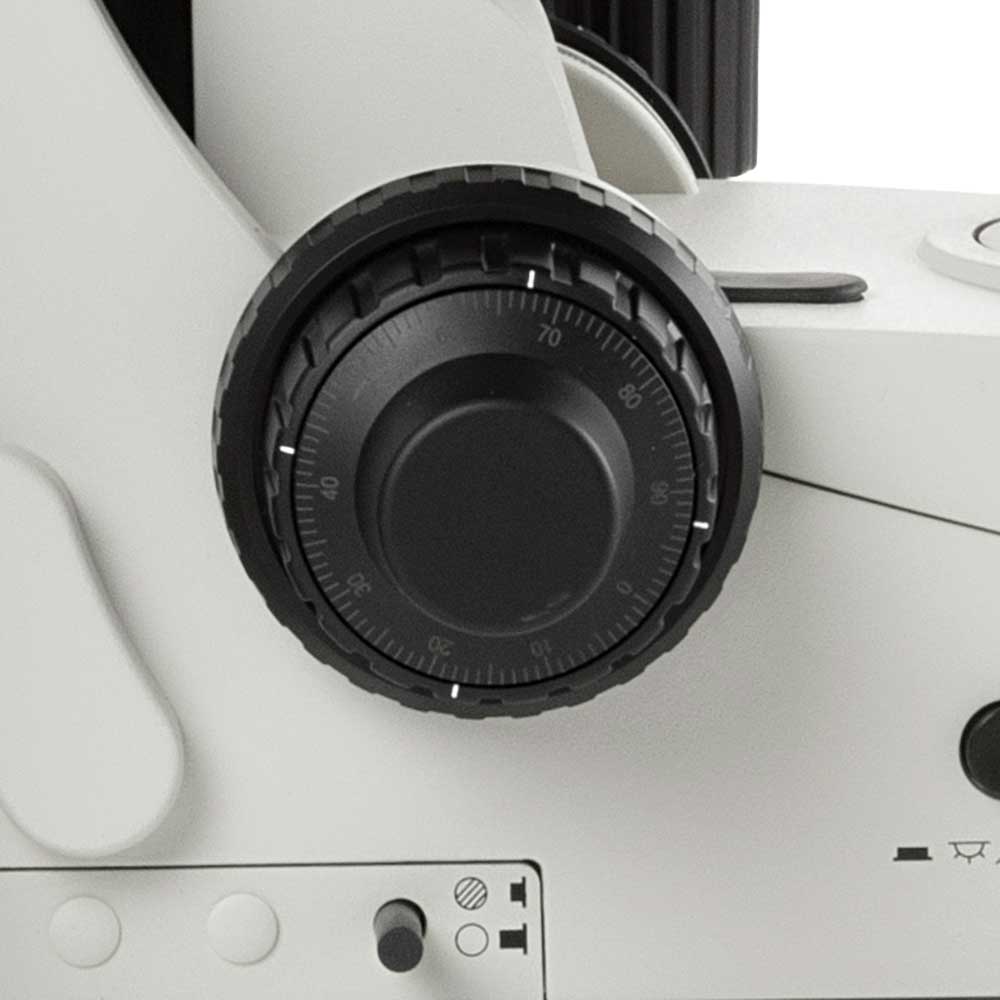

FOCUSING

• Coaxial coarse and fine adjustment, 100 graduations, 1µm precision, 100μm per rotation, total travel range is approximately 35mm

• Supplied with an adjustable rack stop to prevent damage to sample and objectives
• The coarse adjustments are equipped with friction control
• The focusing knobs can be switched from left to right according to the user’s preference

CONDENSER (for brightfield)

• In height adjustable N.A. 0.90/1.25 Abbe swing-out condenser with numerical aperture identification marks.

DIASCOPIC ILLUMINATIONS

• Diascopic intensity adjustable 3W NeoLED™ Köhler illumination with internal 100-240VAC power supply



NeoLED™

• The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length in order to obtain three main benefits:
• More oblique light from the LED light source can be captured, which increases the light output significantly
• Less energy is required to achieve this level of light intensity
• The larger aperture of NeoLED™ allows the optical systems of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics

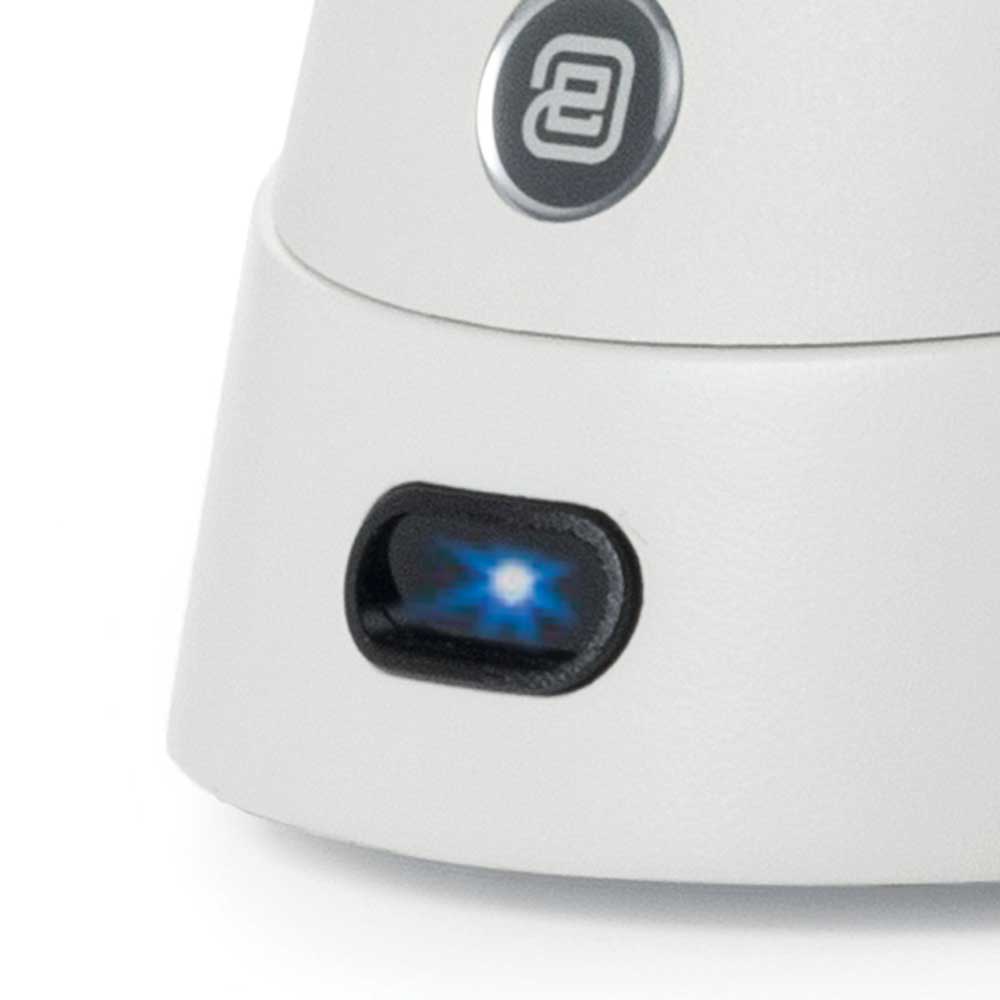

 CARE SENSOR

• The unique iCare Sensor is developed to avoid unnecessary loss of energy.
  The illumination of the microscope automatically switches off shortly after microscopists step away from their position

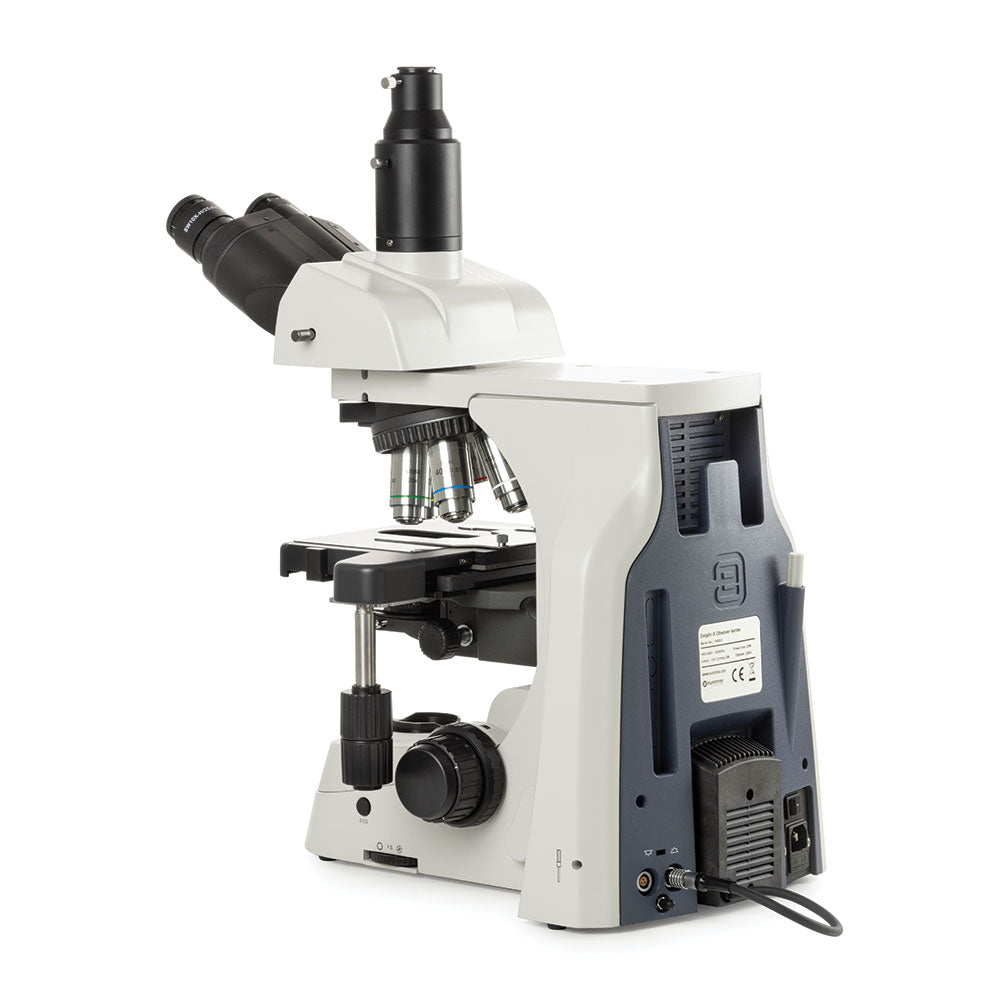

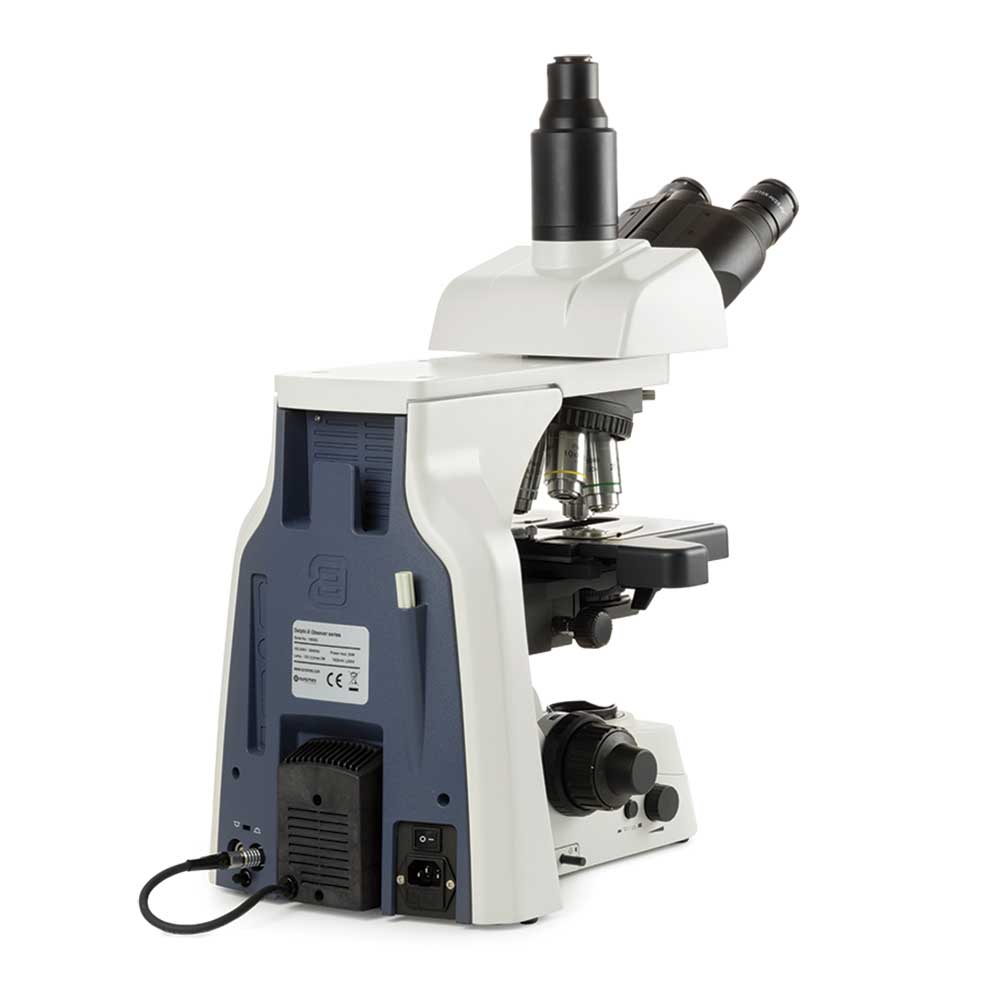

 CARRYING GRIP

• The carrying grip at the back of the microscope ensures safe transportation of the microscope and the integrated tool & holder makes sure the right tool is always available

PACKAGE CONTENT

• Supplied with power cords, dust cover, a spare fuse, user manual and 5mL immersion oil. All packed in a polystyrene box.
