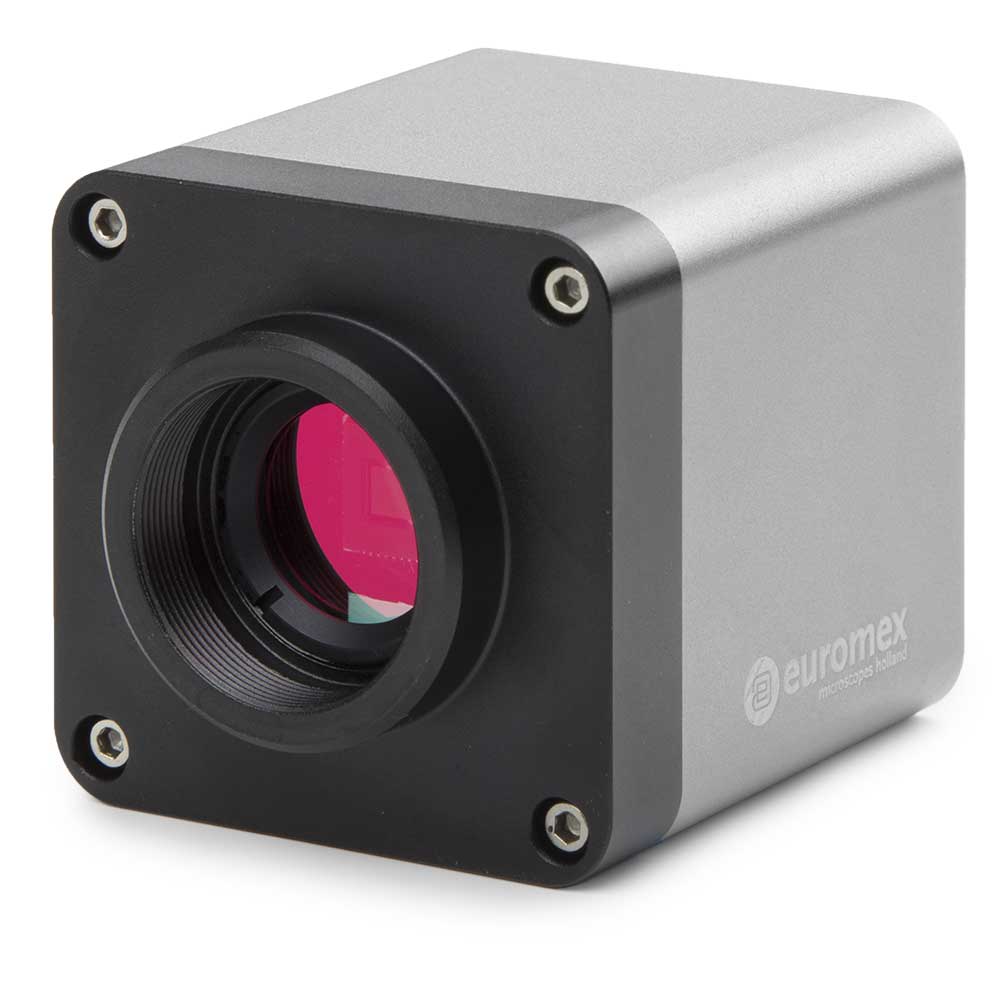

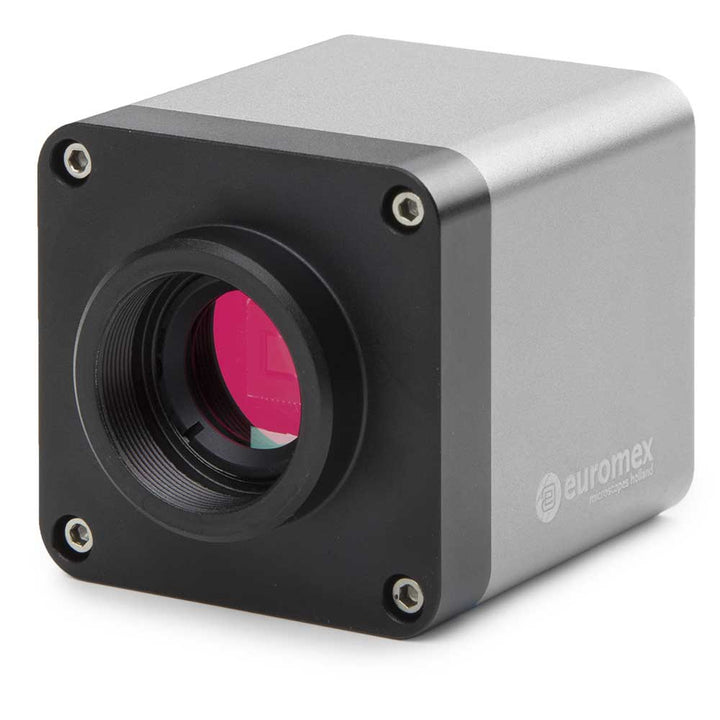

HD-Mini Color Camera

TECHNICAL SPECIFICATIONS

The real time images generated with this camera provide excellent color rendering with high frame rates.

STAND-ALONE CAPABILITIES
No need for a computer or any computer knowledge to use this camera. Most camera settings are performed automatically making this camera very user friendly.

Simply connect the camera to the a high-definition HD screen, TV-HD or HD-beamer with an HDMI input and the system is ready to go. The mouse-driven built-in software of the cameras enables capturing 1920 x 1080 pixels jpg images on the integrated SD memory card.

The embedded software of the camera features functions including:

• image and video capture
• white balance
• auto/manual exposure
• zoom in/out
• horizontal/vertical flip
• video freeze/cancel video freeze
• grid
• display/hide camera control panel
• color adjustment (sharpness / de-noise / saturation / gamma / contrast)
• Wide array of measurement functions

These key features make the camera an ideal choice for real time inspections, educational purposes and live demonstrations.

TECHNICAL SPECIFICATIONS

Sensor

• HDMI 2.0 Mega pixels CMOS high sensitive sensor (Sony)

Format

• 1/2.8-inch, HDTV 1080p

Pixels

• 1920 x 1080 pixels (capture mode)
• 1920 x 1080 pixels (live mode)
• HDMI 60fps

Scan mode

• Progressive scan

Pixel size

• 9 x 2.9μm

Noise

• 3D Noise reduction function

Sensitivity

• 1300mv/lux-sec

Color rendering

• 12 Bits

Signal/Noise (db)

• 42

Dynamic (db)

• 69

White balance

• Automatic/manual/ROI

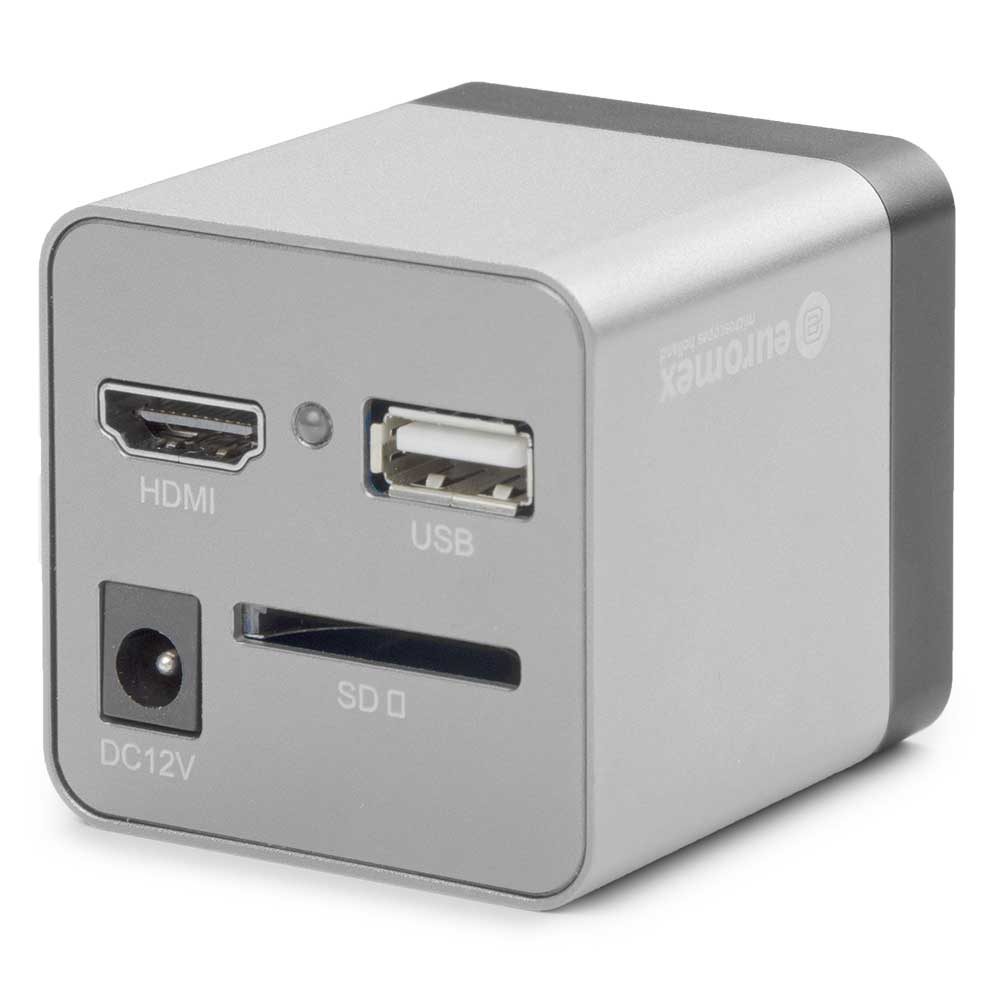

Interface

• HDMI

Storage

• Images are saved to a standard high speed 32GB SD memory card (Recommend using SD card of class 4 or higher and ≤128GB)

Mounting

• C-mount interface

Power supply

• 12VDC/1A adapter

Operation

• -10~ 50 Celsius, 30~80%RH

Storage

• -20~ 60 Celsius, 10~60%RH

Supplied with

• HDMI cable, DC 12VDC/1A power supply, 32GB SD Card, USB mouse, 0.5x c-mount adapter, 23.2~30.0/ 30.5mm adapter rings

Power supply

• DC 12V/ 1A adapter

Features included in the on-screen software
Image and video Capture, White balance, Auto/ Manual exposure, Zoom In/ Out, Horizontal/ Vertical Flip, Video Freeze/ Cancel Video Freeze, Grid, Display/ Hide Camera Control Panel, Color Adjustment (Sharpness/Noise Reduction/Saturation/Gamma/Contrast), measurement functions

Compatibility

• Suitable for all HDMI screens, monitors and beamers

PACKAGING

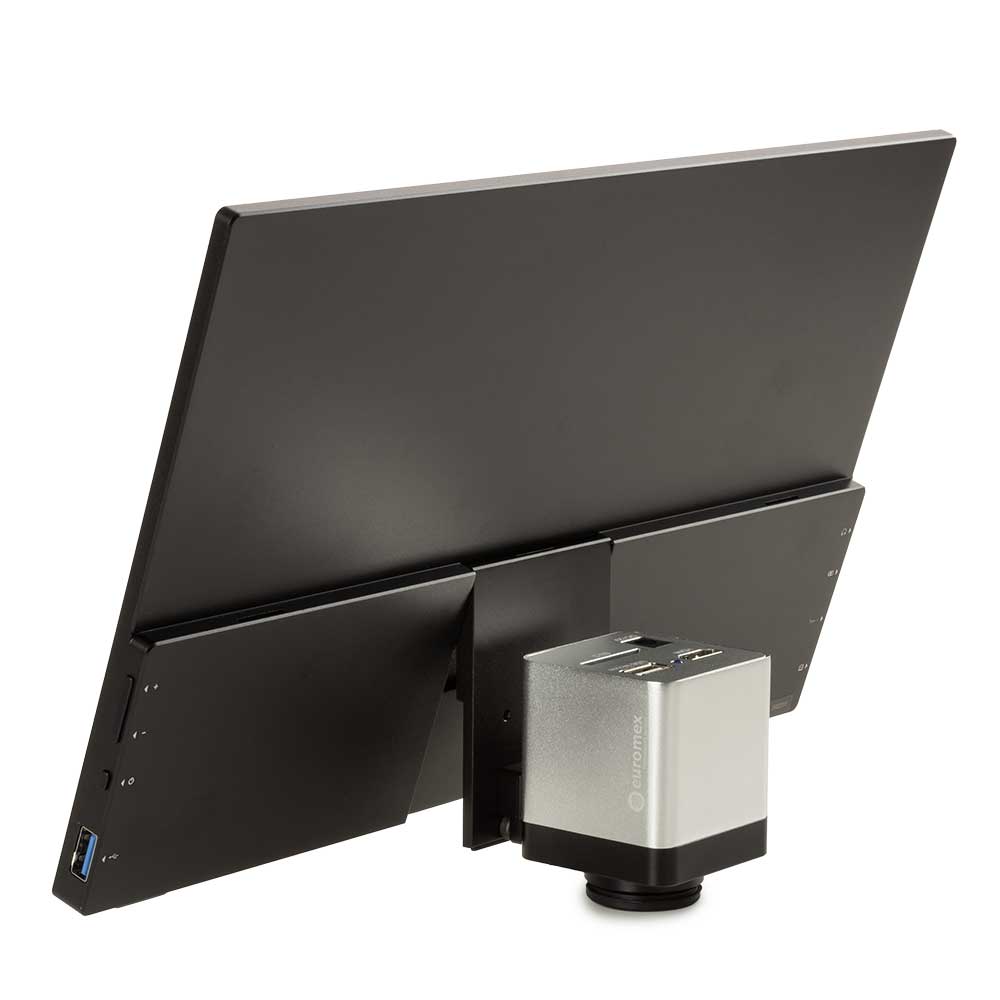

The HD-Mini VC.3024-HDS is, apart from the above, also equipped with an 13" HD screen
