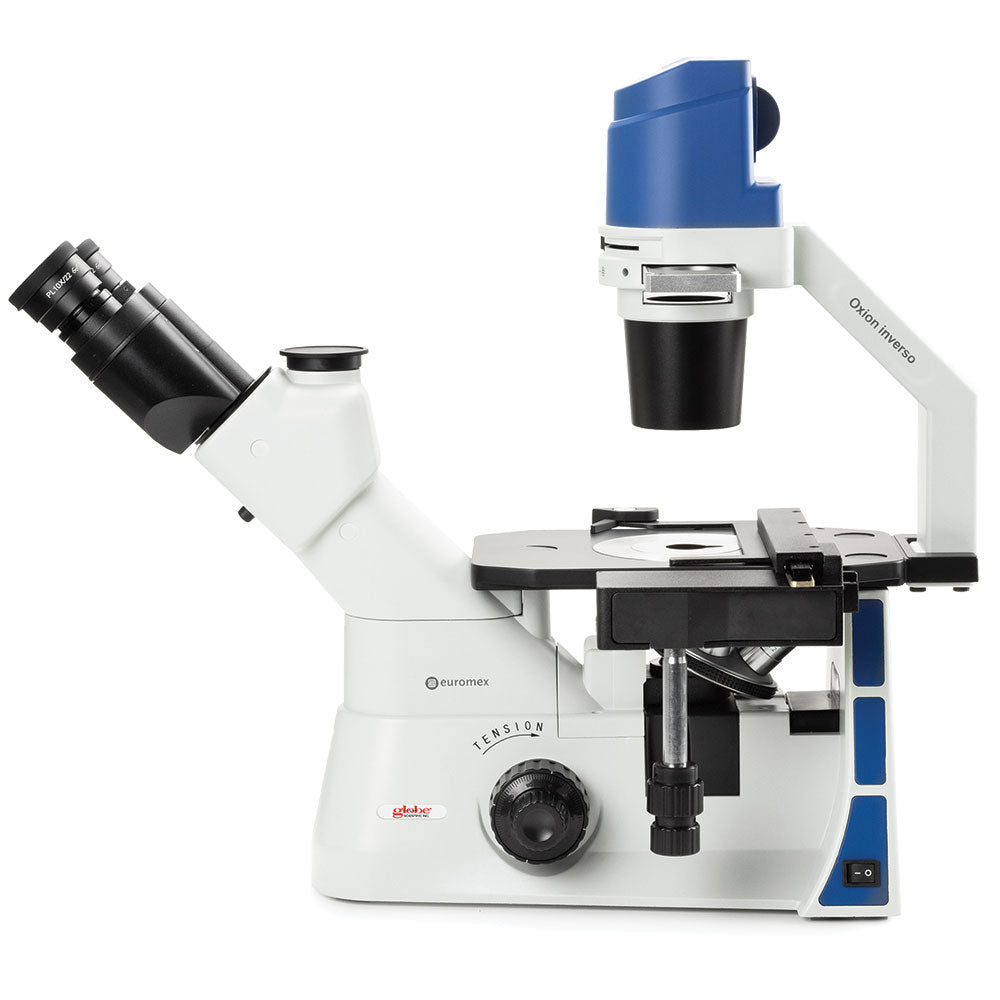

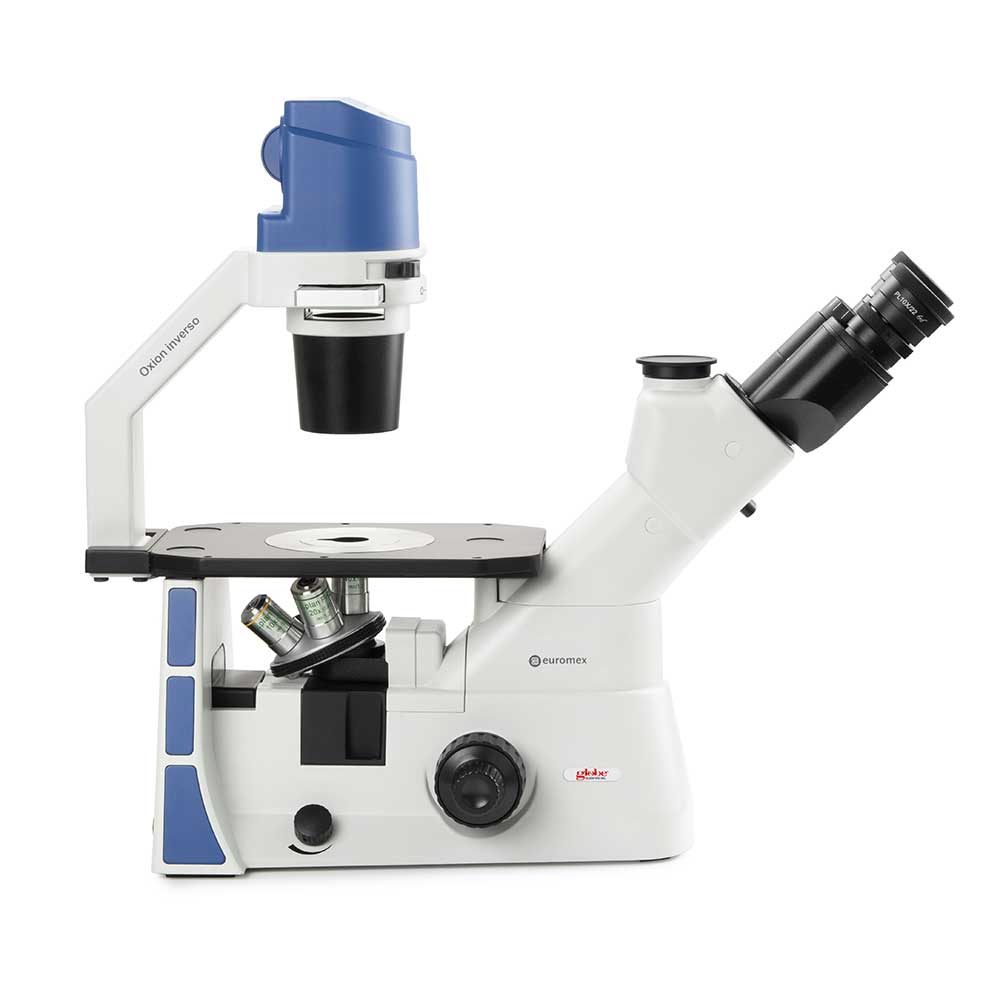

Oxion Inverso Inverted Microscopes
Oxion Inverso
|
|
EOX-2053-PLPH |
|
Head |
Trinocular 45º inclined. 54-75mm interpupillar. Diopter adjustment on left eye tube |
|
Eyepiece |
HWF plan 10x/22mm |
|
Nosepiece |
Quintuple |
|
Objective |
Plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives |
|
Stage |
250x230mm. XY: 120x78mm. Includes: stage extension. Metal insert Ø65mm stage. Metal insert 76x26mm for slides |
|
Condenser |
A.N. 0,30 with iris diaphragm. Slider with PH rings for 4x/10 and 20x/40x objectives |
|
Illumination |
5W NeoLed™ |
EYEPIECES
- Pair of DIN HWF plan 10x/22mm eyepieces
HEAD
- Trinocular 45° inclined tubes with extended low and high positions for eyepieces
- One diopter adjustment on left eyepiece
- Interpupillary distance of 54 to 75mm
- Trinocular head with 100-0 % and 0-100 % positions
NOSEPIECE
- Revolving quintuple nosepiece on ball-bearings

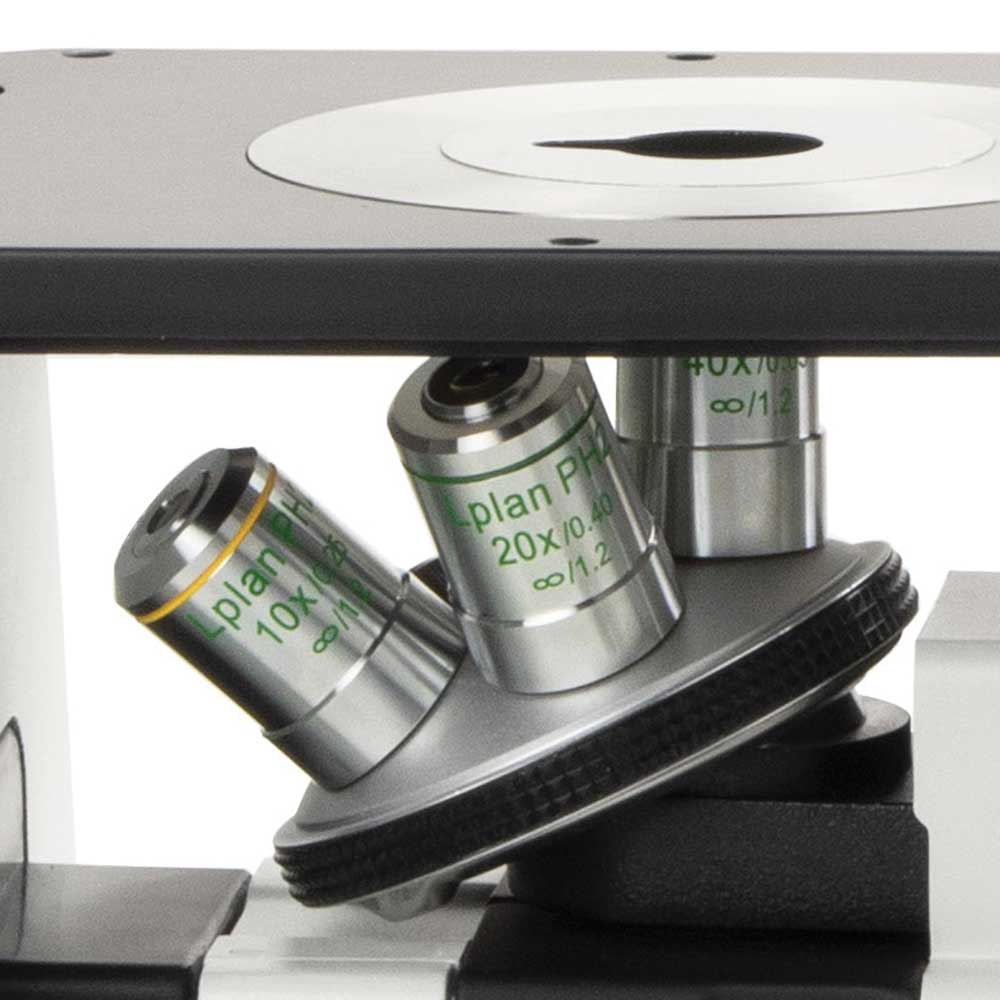

OBJECTIVES FOR PHASE CONTRAST
- Infinity color corrected long working distance plan phase 10x/0.25, 20x/0.40, 40x/0.60 IOS objectives
All objectives corrected for 1.2mm thickness.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
STAGE
Stage 250 x 230mm equipped with a coaxial mechanical 120 x 78mm X-Y stage, delivered with:
- metallic insert for Ø 35mm cell culture dish dishes
- 76 x 26mm slide holder
- glass insert with hole
CONDENSER
- A. 0.30 condenser with iris diaphragm. Working distance 72mm
- The model for the phase contrast OX.2053- PLPH is delivered with a slider with 4x/10x and 20x/40x pre-centered phase rings
FOCUSING ADJUSTMENT
- Coaxial 25mm coarse and fine adjustments, 2μm precision and with friction adjustment
ILLUMINATION
- Transmitted 5W LED Intensity adjustable with internal 100-240V power supply. Fuse holder 3.15 A / 250V.
FILTERS FOR PHASE CONTRAST MODELS
- Interference filter 550nm green and blue filter, 45mm diameter
PACKAGE CONTENT
- Supplied with power cord, dust cover and user manual
- Phase contrast models are supplied with green filter and alignment telescope
- Microscope supplied in a transport case
|
Item # |
Description |
|
EOX-2053-PLPH |
Inverted Microscope, Biological, Phase Contrast, 10x/22mm Eyepieces, LWD Plan Phase 10/20/40x Objectives, Mechanical Stage (250x230mm with Coaxial 120x78mm X-Y Stage, including metallic insert for Ø 35 mm cell culture dish dishes, 76 x 26mm slide holder and glass insert with hole) |
Ordering Information
Inverted trinocular microscope with mech, stage 10/20/40x,5W LED & w/transpor. box
Each
$5,189.80
Inverted trinocular microscope with mech, stage 10/20/40x,5W LED & w/transpor. box

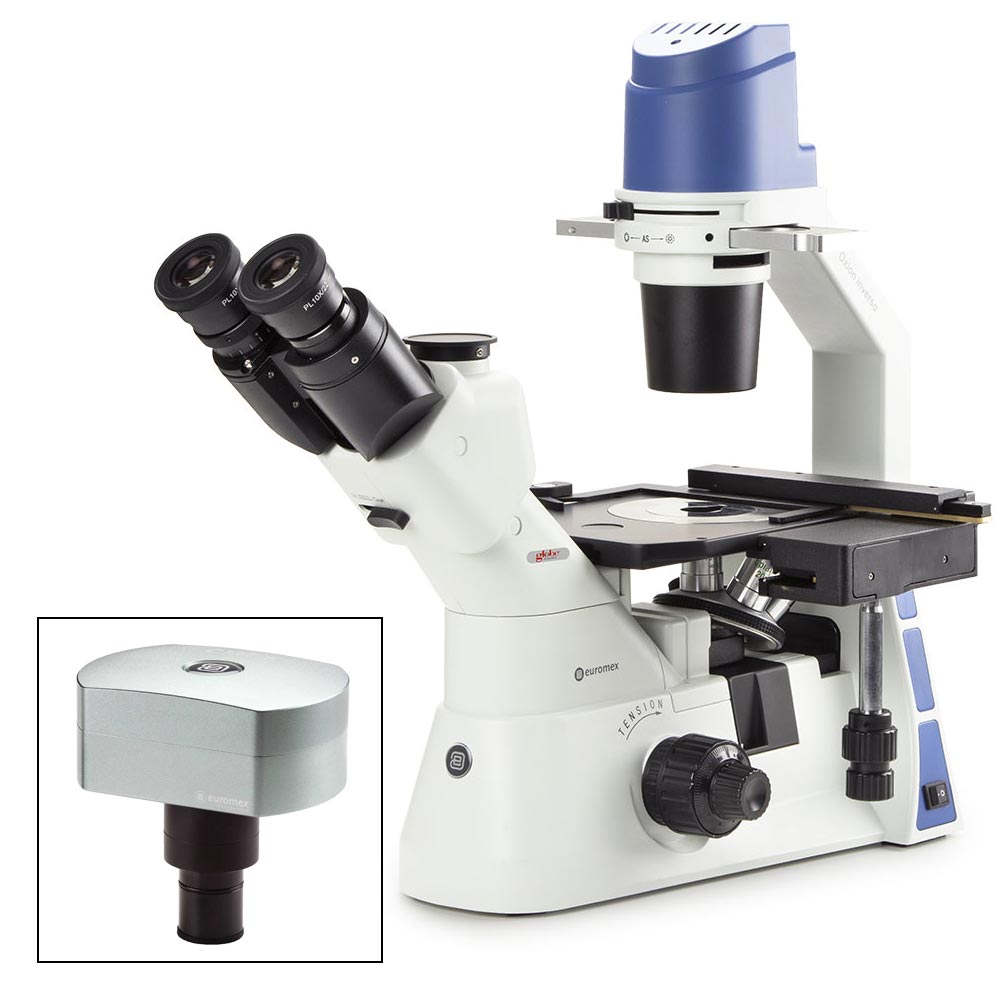

Inverted trinocular microscope with mech, stage 10/20/40x, w/ camera
Each
$5,832.90
