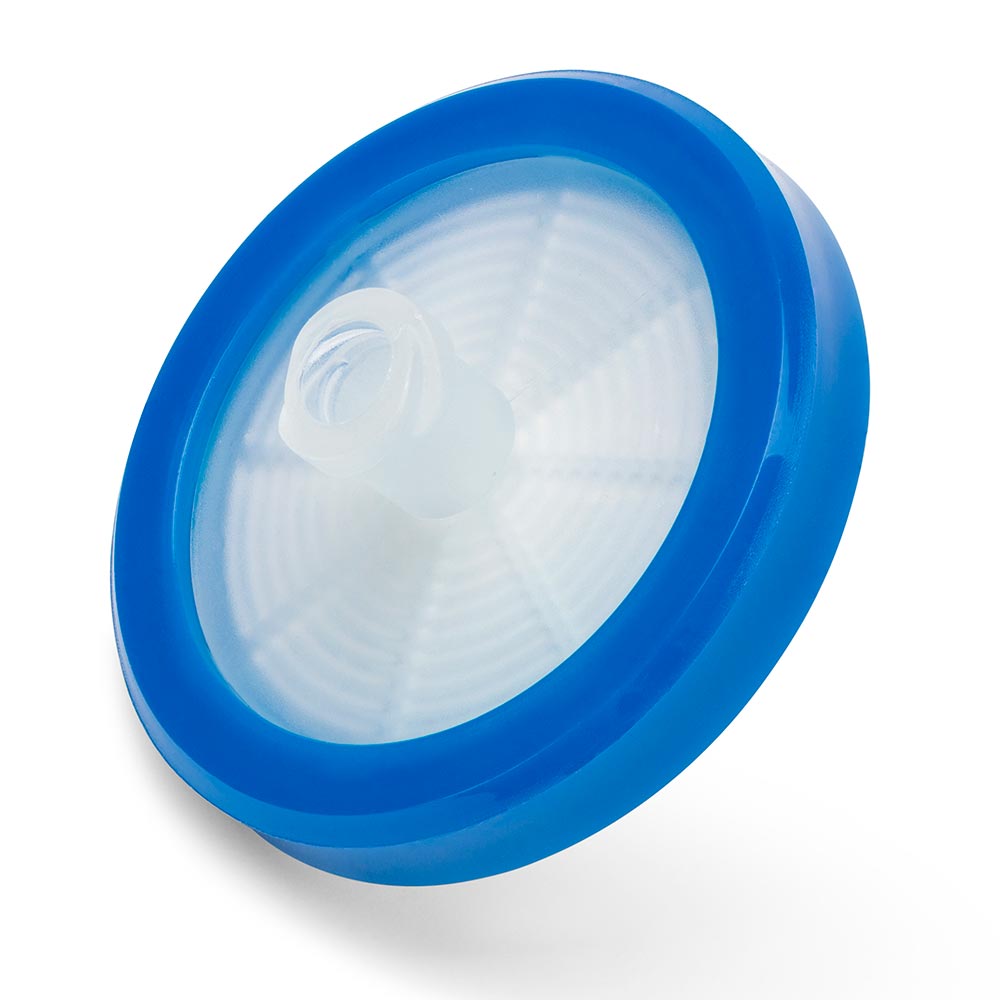

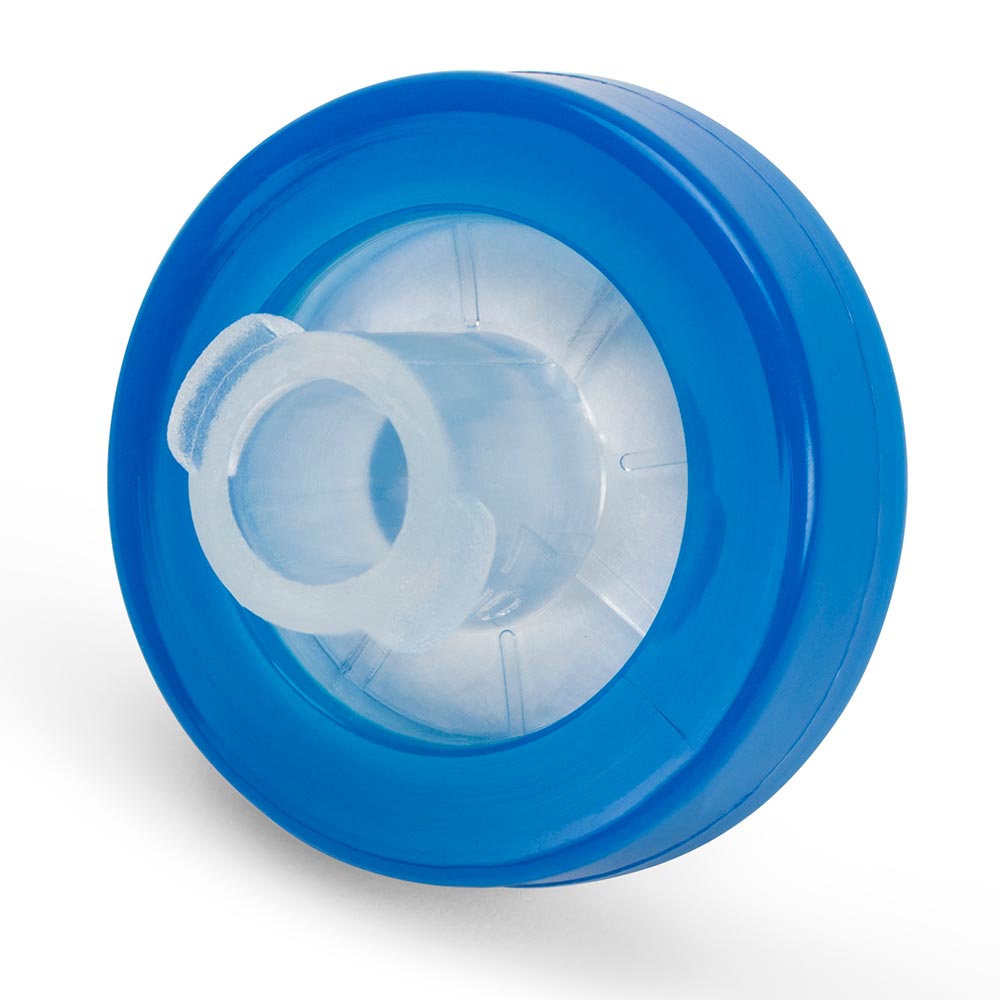

Sterile MCE Syringe Filters

Sterile Diamond® PureFlow™ syringe filters satisfy requirements of life science applications for sterilization of solutions or clarification of biological fluids. Sterile filters include a polypropylene (PP) microfiber pre-filter layer to improve filtration of particulate-laden fluids that are difficult to filter with single layer syringe filters.

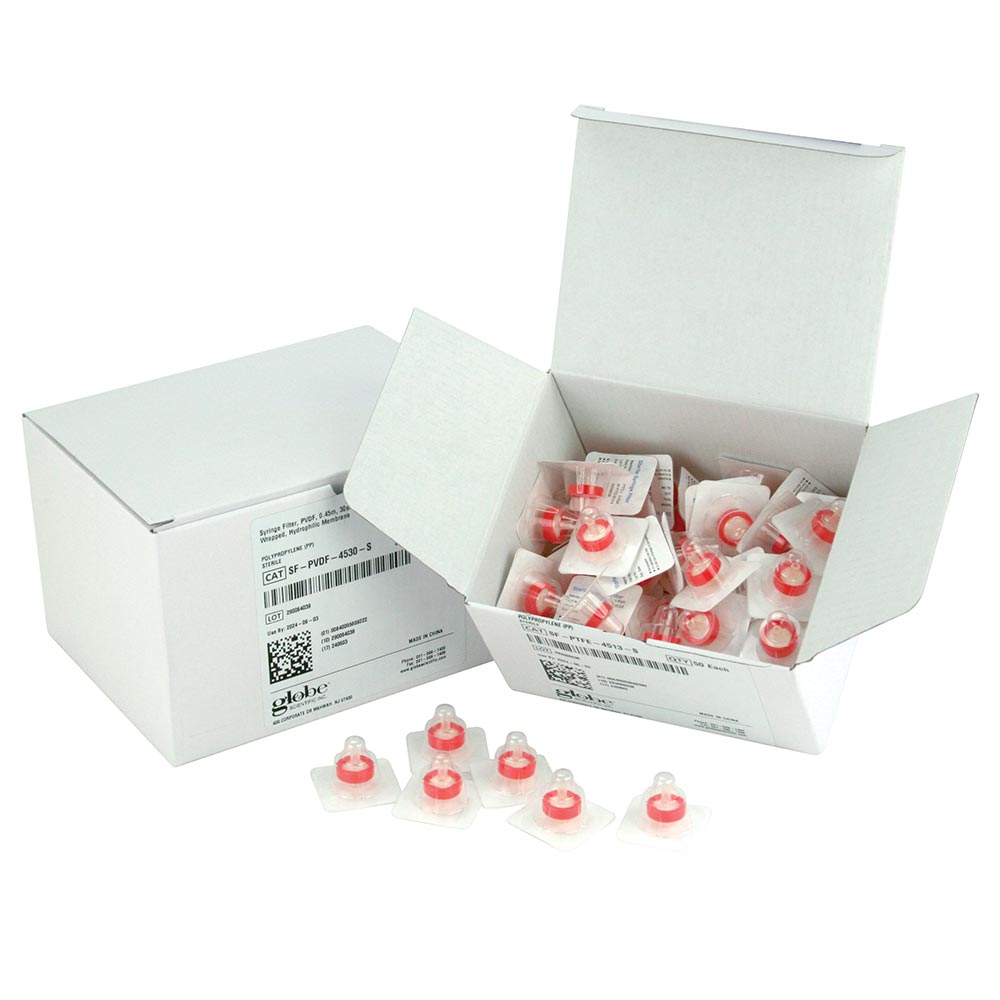

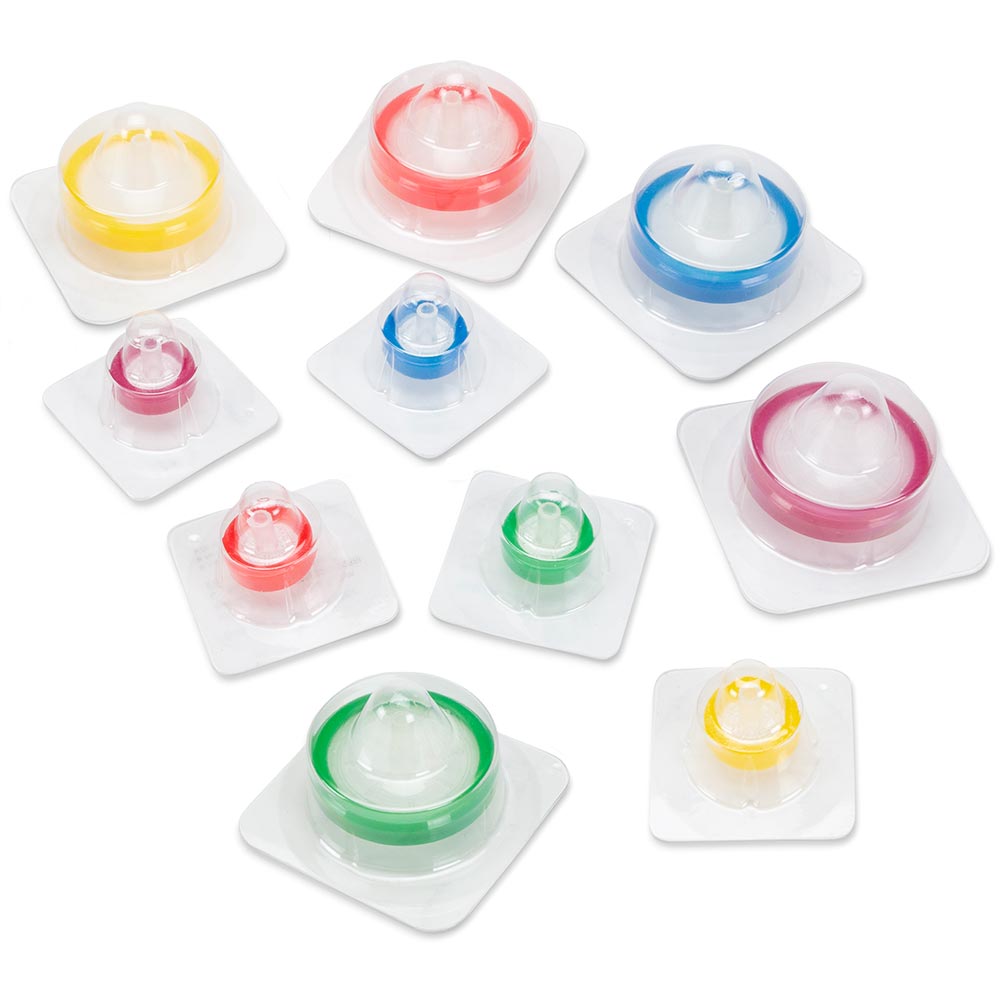

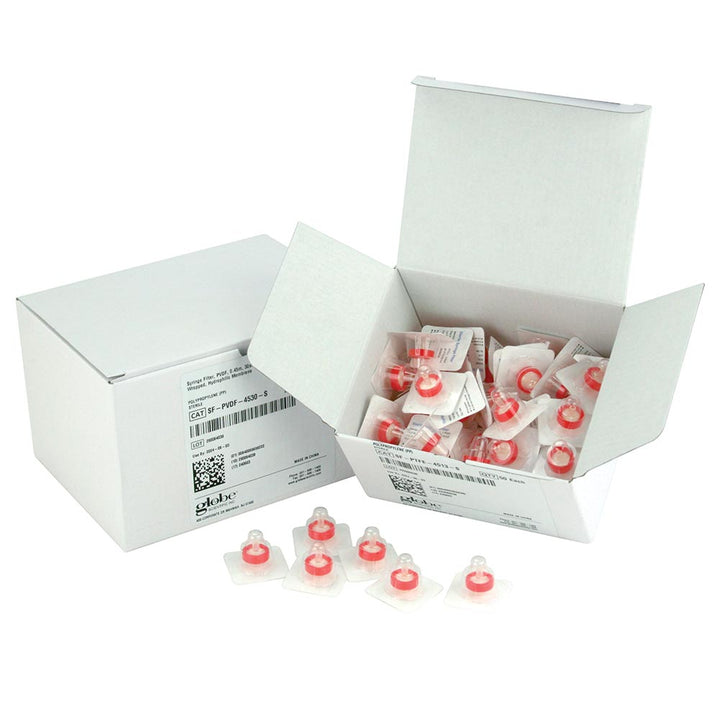

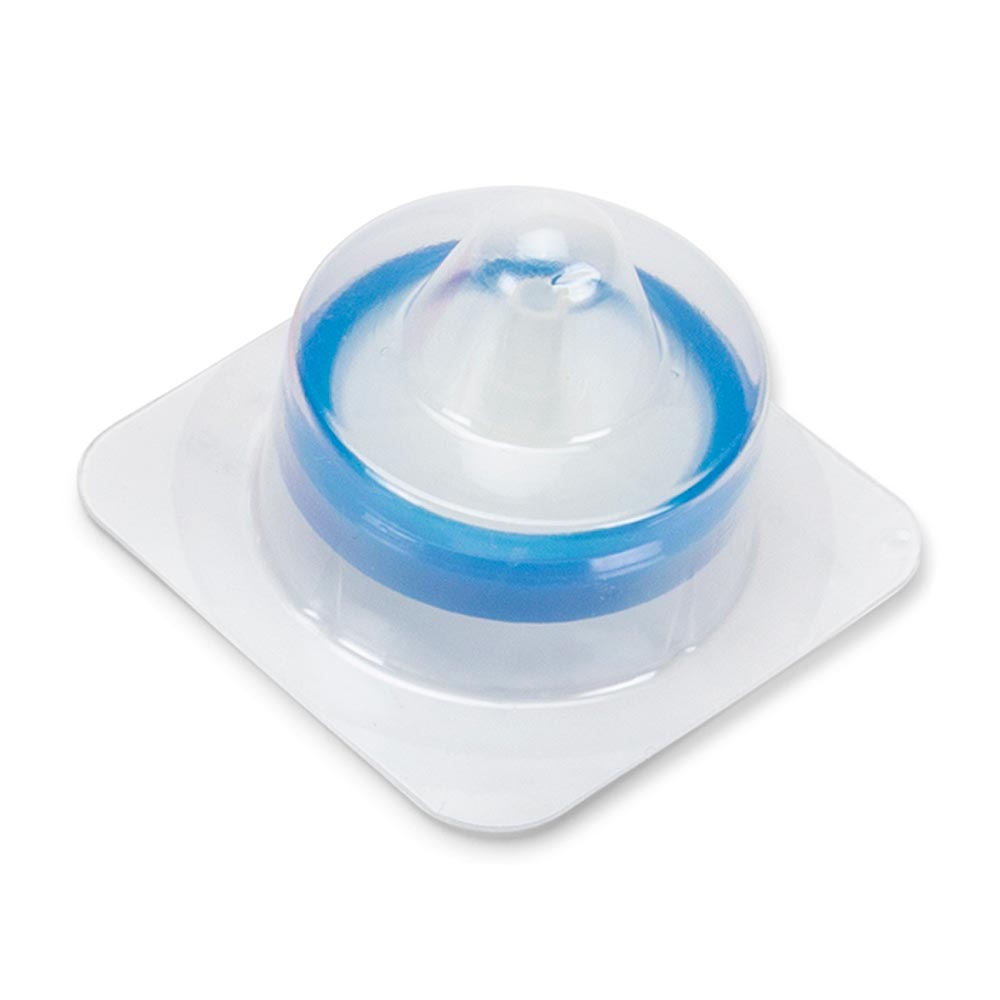

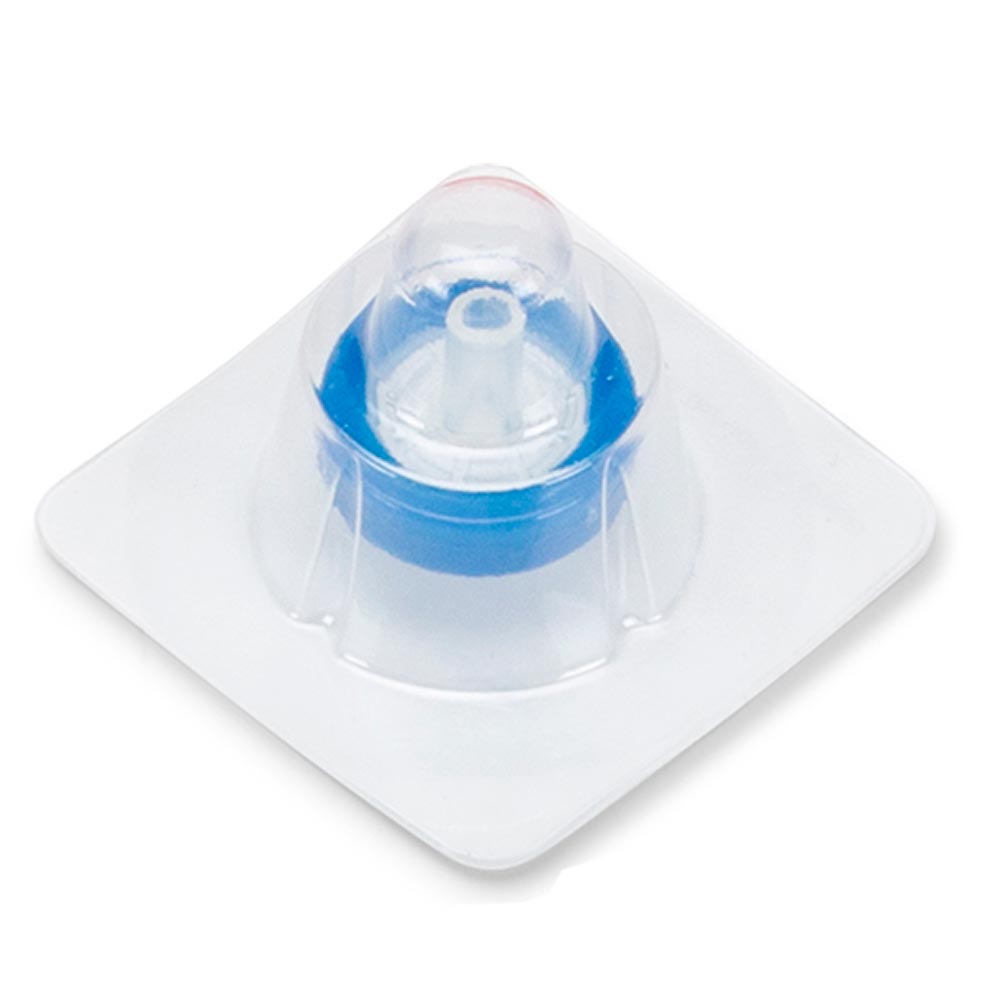

  • Individually packaged in a peelable blister pack with filter diameter, membrane type, and membrane porosity clearly marked on each package
  • Sterilized by Gamma Irradiation to SAL 10-6
  • RNase & Dnase free

Get the Diamond® PureFlow™ Advantage:

  • Performance- High flow rates and low absorption membranes for minimal sample loss
  • Simplicity- Color coded outer ring allows easy identification of membrane and filter media type. Each unit is clearly marked with an identifying code to denote pore size and membrane material.
  • Strength- Bonded outer ring on housing provides strength ender higher working pressures for higher performance needs
  • Efficiency- Integral polypropylene pre-filter for high flow rates and fast filtration
  • Quality- Manufacturing process certified to ISO 9001 standard

MCE (Mixed Cellulose Ester) Membrane

  • Low protein binding and biologically inert
  • Aqueous samples
  • Ideal for air monitoring, particle analysis, bacteriological analysis and sterilizing filtration
  • pH Range: 4-8

Specifications
Diameter 13mm 30mm
Housing Material PP PP
Filtration Area (cm²) 0.092 4.9
Holdup Volume (μl) <10 <120
Volume Throughput (ml) 10 100
Connections (Inlet/Outlet) Female Luer Lock Inlet / Male Luer Slip Outlet Female Luer Lock Inlet / Male Luer Slip Outlet
Max Operating Pressure (psi) 87 87
Max Operating Temperature (°C) 100 100
Prefilter PP PP



Syringe Filters Brochure

Ordering Information

Item Number ImageDescription Color UnitQuantity Unit Price
SF-MCE-2213-S Syringe Filter, MCE Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Blue Box of 50 $76.00
Syringe Filter, MCE Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.22μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-MCE-2213-S
Unit Price $76.00
Color Blue
Unit Box of 50
Quantity
SF-MCE-2230-S Syringe Filter, MCE Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Blue Box of 50 $151.80
Syringe Filter, MCE Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.22μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-MCE-2230-S
Unit Price $151.80
Color Blue
Unit Box of 50
Quantity
SF-MCE-4513-S Syringe Filter, MCE Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Blue Box of 50 $76.00
Syringe Filter, MCE Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.45μm Porosity, 13mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-MCE-4513-S
Unit Price $76.00
Color Blue
Unit Box of 50
Quantity
SF-MCE-4530-S Syringe Filter, MCE Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Blue Box of 50 $151.80
Syringe Filter, MCE Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped Syringe Filter, MCE Membrane, 0.45μm Porosity, 30mm Diameter, PP Housing, STERILE, Individually Wrapped
Item Number SF-MCE-4530-S
Unit Price $151.80
Color Blue
Unit Box of 50
Quantity
Summary: $0.00
