UHD-4K Microscope Camera

High definition 4K UHD 2160p CMOS color camera with HDMI and USB-3 interface

The 4K Sony Ultra HD camera offers - with the latest horizontal display resolution of 3,840 pixels (2,160p) and new 4K screens a new solution to modern microscopy for industry and laboratories where more spatial detail and contrast is needed. With the latest horizontal display resolution of 3,840 pixels (2,160p) and new 4K screens, this UHD image quality camera can be used for biological, metallurgical or stereo microscopes.

This standalone camera provides excellent color rendering at high frame rates, with up to 60 frames per second.

The 4K UHD ultra-high-definition camera can be used in two modes, as stand-alone with its embedded mouse-driven software or in a computer-controlled mode. A Wi-Fi dongle is provided to connect the camera to the computer (ImageFocus Alpha software).

FEATURES

  • Ultra HD 2160p, 8.3 MP, 1/8-inch color 4K Sony sensor
  • 3840 x 2160 pixels, 60 fps, H264 codec

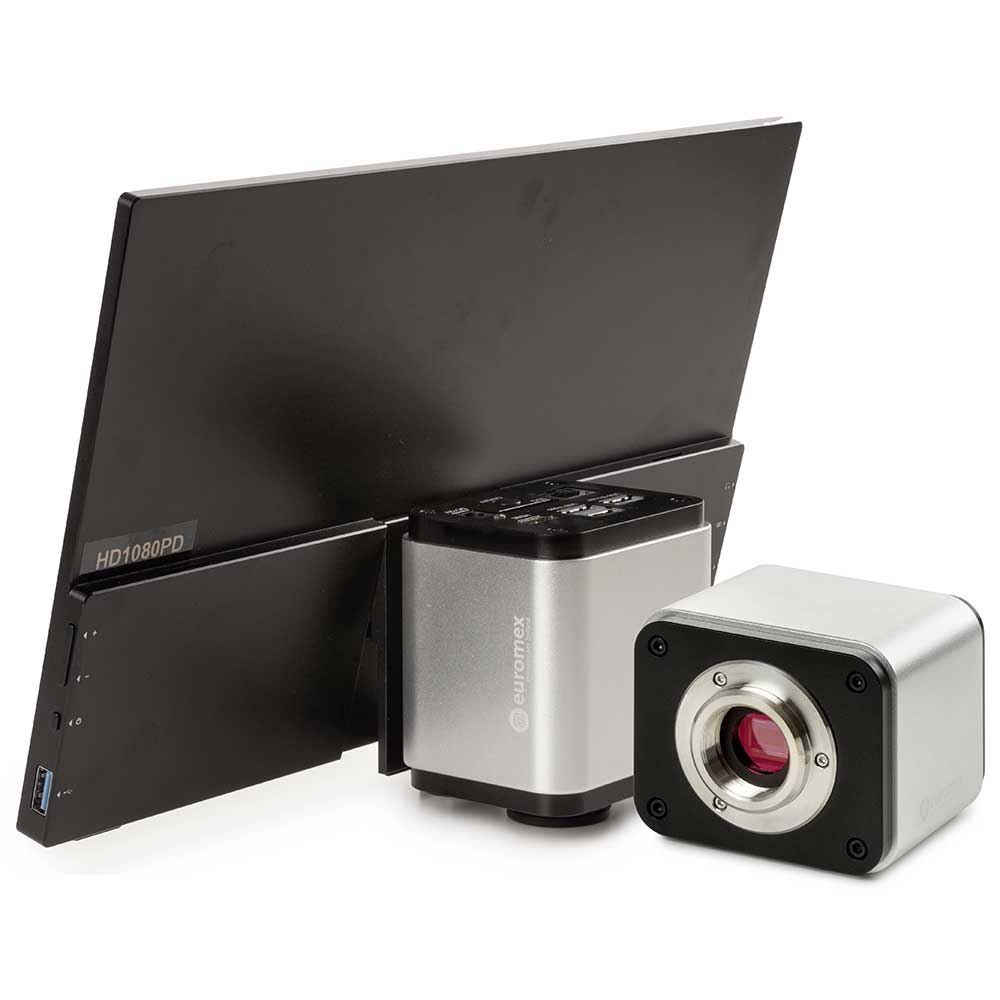

  • Real time images directly on TV, monitor or beamer
  • Built-in mouse-driven software
  • 4K HDMI 2.0 standard

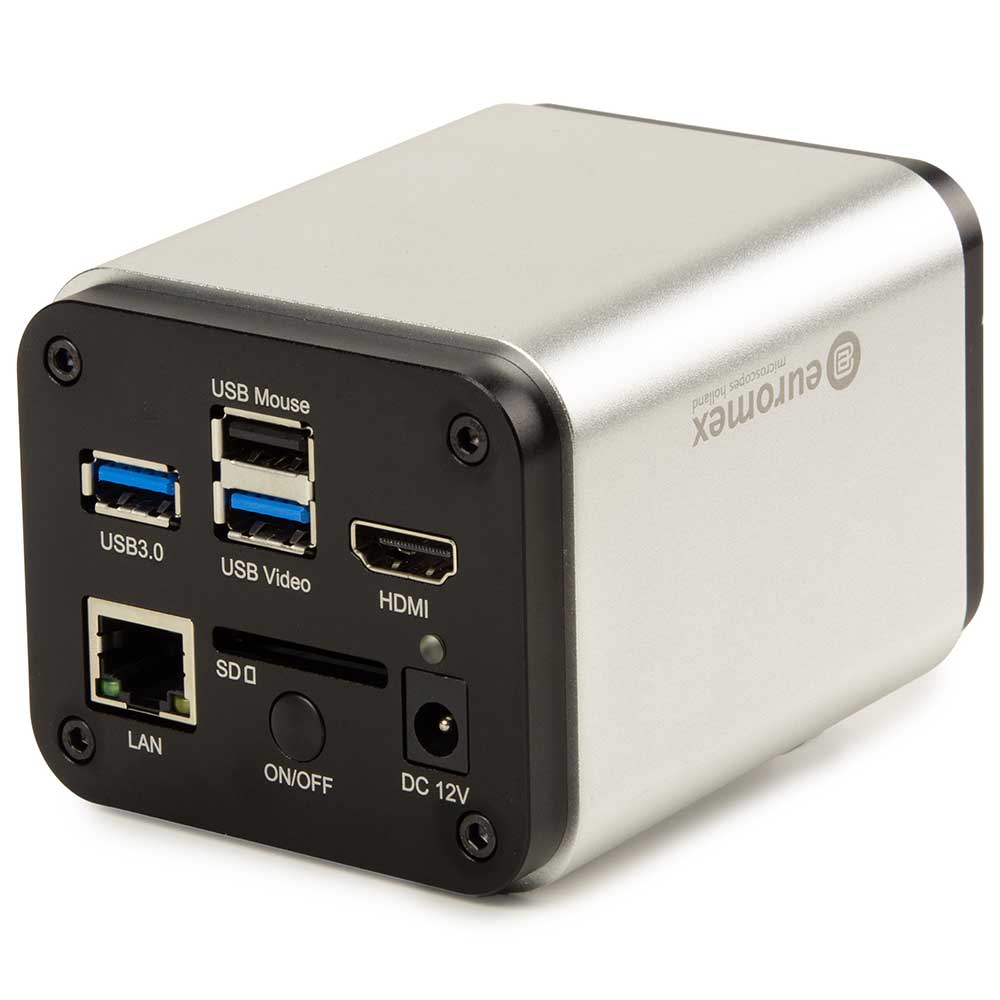

  • Interface: HDMI, USB-2, Ethernet, Wi-Fi
  • Works with ImageFocus Alpha software
  • Color depth 36 bits
  • Stand alone or used via PC
  • C-mount interface
  • 2061p/1080p automatic switching
  • Storage on SD card or flash drive





EVC-3045

Models

UHD-4K

Sensor

1/1.8” Sony CMOS

Pixel size

2.0 x 2.0μm

Pixels

3840 x 2160

Color rendering (bits)

36

Signal/Noise (db)

40.5

Sensitivity Lux/sec

505mV



TECHNICAL SPECIFICATIONS

Sensor
4K Sony

Format
1/1.8”, HDTV 2160p

Pixels
3840 x 2160 (capture mode)
HDMI 30fps, USB 30fps

Pixel size
2.0 x 2.0 μm

Video
2160 pixels video recording mode

Scan mode
Progressive scan, rolling shutter

Noise
3D algorithm

Sensitivity
3541 mv with 1/30s

Exposure
Automatic/ manual

White balance
Automatic/ manual/ ROI

S/N Max
40.5

Interfaces
HDMI, USB-3*, LAN, WiFi * USB 2 compatible but limitations in speed and resolution

Storage
High-speed 32GB SD memory card (larger capacity SD cards are optional, max 128GB)

Camera buttons
On/Off

Mounting
C-mount interface

Power supply
DC 12V/1A adapter

Humidity
30~80%

Operation temperature
-10~ 50 ° Celsius

Storage temperature
-20~ 60° Celsius

Measurement
Supported

Supplied with
0.5x objective with C-mount, 30mm and 30.5mm adapters for stereo microscopes, 12 V/1 A power adapter, 32GB SD card, Micro USB Synchronous cable 1.5M, HDMI cable, USB mouse, WiFi dongle, 76 x 24mm calibration slide (1mm/100), carton box

PC software
Works with ImageFocus Alpha imaging and measuring software for Windows 10/11 (32 and 64-bit configurations) and Linux. A macOS version is also available (with a few differences in features)

PC requirements
Compatible with Intel Core 2, 2.8GHZ or higher, 2GB, USB-3



Microscopes Catalog Spanish Microscope Catalog

Ordering Information

Item Number ImageDescription UnitQuantity Unit Price
EVC-3045 Ultra HD/4K high definition camera with 1/1.8 inch Sony 4K sensor, micro-SD card, HDMI, USB-3, LAN

Ultra HD/4K high definition camera with 1/1.8 inch Sony 4K sensor, micro-SD card, HDMI, USB-3, LAN

Each $1,530.60
Ultra HD/4K high definition camera with 1/1.8 inch Sony 4K sensor, micro-SD card, HDMI, USB-3, LAN

Ultra HD/4K high definition camera with 1/1.8 inch Sony 4K sensor, micro-SD card, HDMI, USB-3, LAN
Item Number EVC-3045
Unit Price $1,530.60
