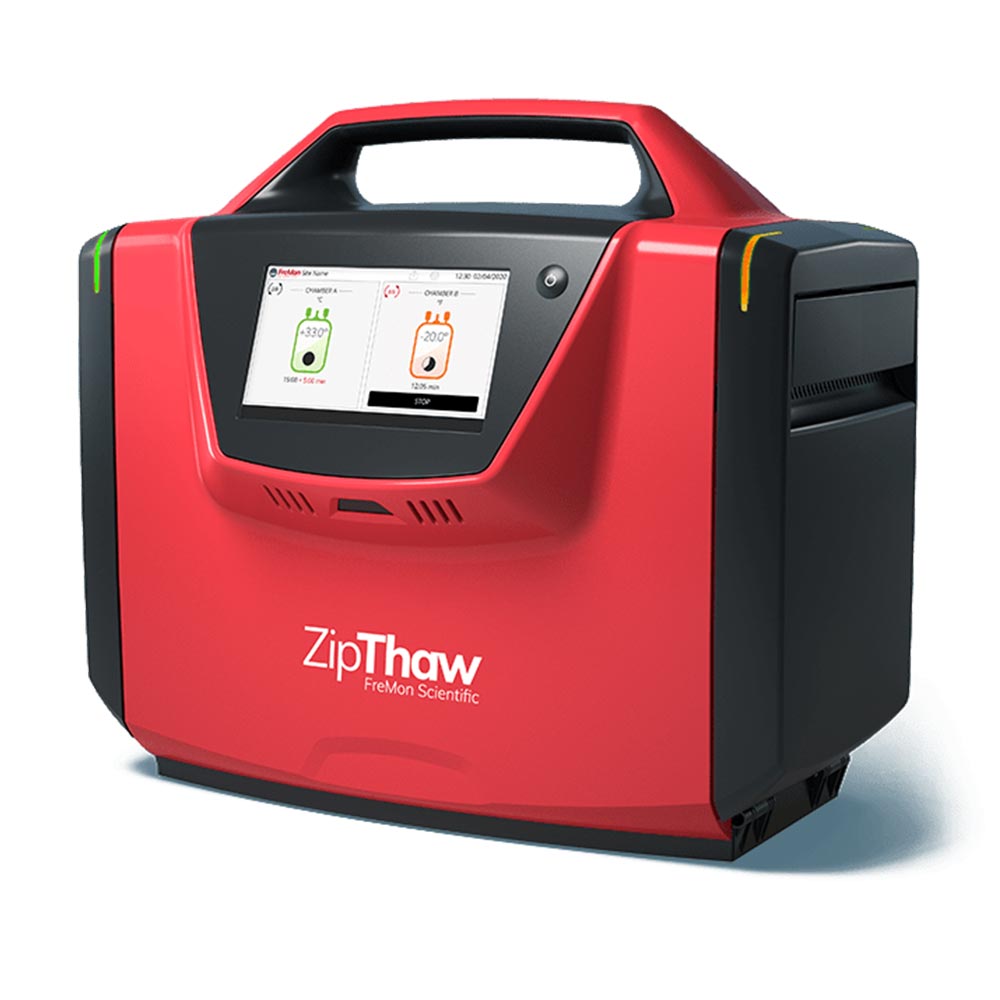

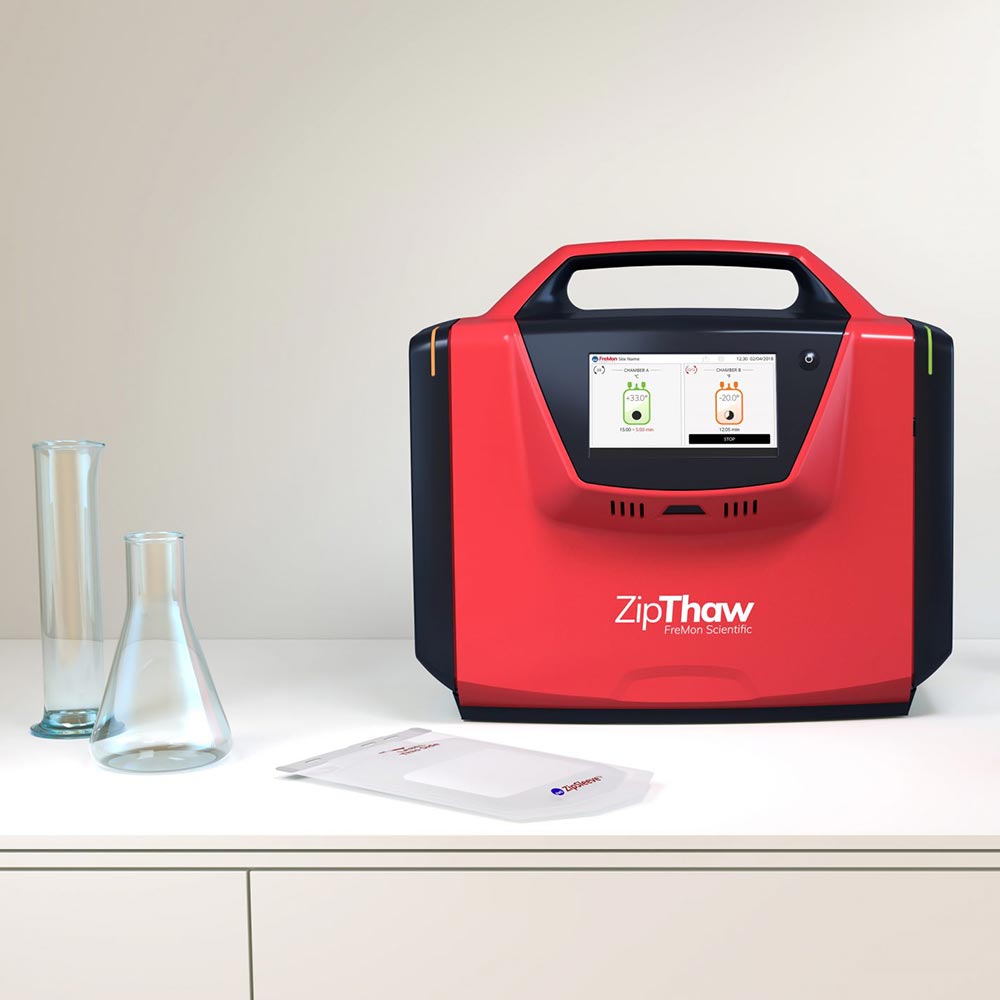

ZipThaw® Dry Thawing Device
| Specifications | |
| Dimensions |
18.5"W x 10.9"D x 16.4"H 47.1cm W x 27.6cm D x 41.6cm H |
| Weight | 29 lbs / 13 Kg |
| Thawing Technology | Electrical power, disposable RFID sleeve |
| Typical Capacity | Single or dual independently operated chambers |
| Heating Temperature |
• Thawed plasma not to exceed 37°C ±0.5°C • Precise sensors display end-of-run actual thawed plasma temperature |
| ZipSleeve Sensors | Cutoff Temperature: Melt 15°C / Thaw 31°C |
| Agitation Method | Electronic control mechanical massage |
| Visual Display | 7” touch screen |
| System |
Main CPU: VAR-SOM-SOLO Dual: Freescale i.MX6 |
| Storage Humidity | 30% – 90% non-condensing |
| Interface & Network | USB 2.0 OTG |
| Internal Memory | Stores 2,000 most recent cycles |
| Electrical Rating | 100–240VAC, 50/60Hz 2.5Amp |
| Internal Power Supplies |
Medical grade, isolating power-supply • Input: 100–240Vac, maximum rated current 2.5A • Outputs: 2 x 24VDC, 12.5A maximum current |
| Environmental Requirements |
• Ambient Operating Temp: 10°C to 32°C (50°F to 86°F) • Ambient Humidity: 20% to 70% non-condensing • Storage Temperature (in original packaging): -20°C to 70°C (-4°F to 158°F) |
| Warranty | 1 Year |
Ordering Information
Item Number
ImageDescription
UnitQuantity
Unit Price
BPS-47-ZT202D
ZipThaw® Dry Thawing and Warming Device, 100-240v, 50-60Hz
EA $18,990.00
ZipThaw® Dry Thawing and Warming Device, 100-240v, 50-60Hz
Item Number
BPS-47-ZT202D
Unit Price
$18,990.00
Unit
EA
Quantity
BPS-47-ZTS202S10

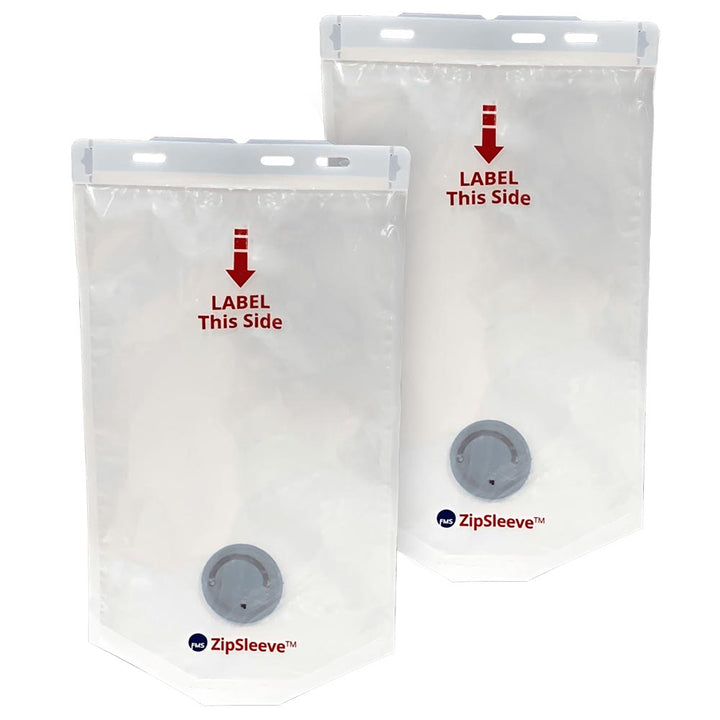

ZipSleeve® 10 Pack, Reusable Protective Sleeve, 10 per Pack, 8 Thaws per Sleeve
BOX/10 $595.00
ZipSleeve® 10 Pack, Reusable Protective Sleeve, 10 per Pack, 8 Thaws per Sleeve
Item Number
BPS-47-ZTS202S10
Unit Price
$595.00
Unit
BOX/10
Quantity
